SELECT A DIAGRAM

01 - Cover

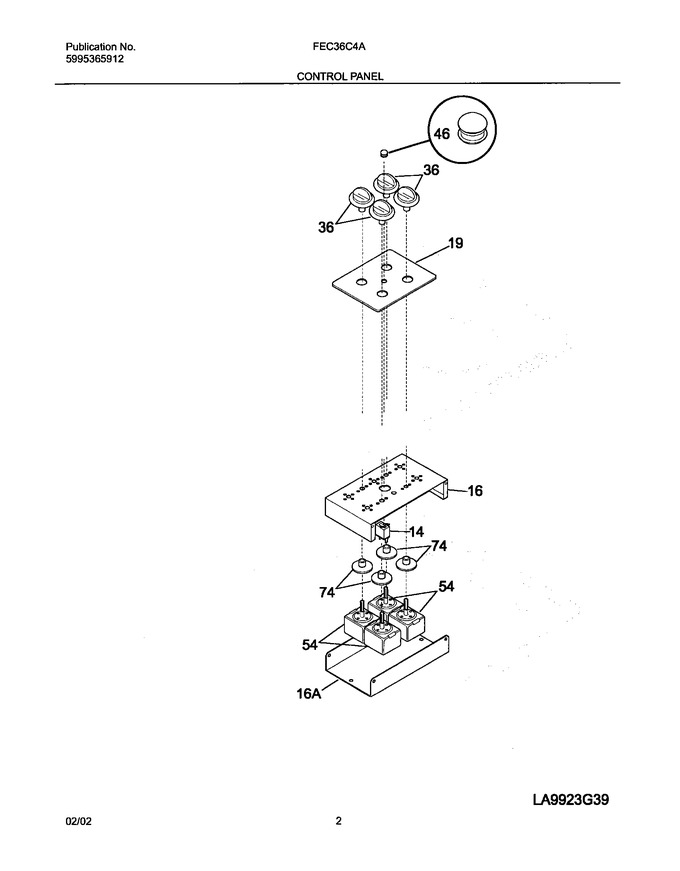

03 - Control Panel


05 - Main Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303323991		Lamp,indicator				$ 26.25
16	3200422		Plate, Instrument Mtg		Appelez-nous	-
19	318183506		Insert,black		Appelez-nous	-
36	318196634		Knob,control ,black				$ 64.50
46	5303200418		Lens, Indicator Light		Appelez-nous	-
74	318146010		Bushing,switch				$ 17.16
16A	3200430		Cover, Instrument Mtg.		Appelez-nous	-
F54	5303935086		Switch-surface Unit, (4)   (Replaces: 318120504)			Immediately	$ 51.95
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5304410665		Screw,10-32 X 5/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
