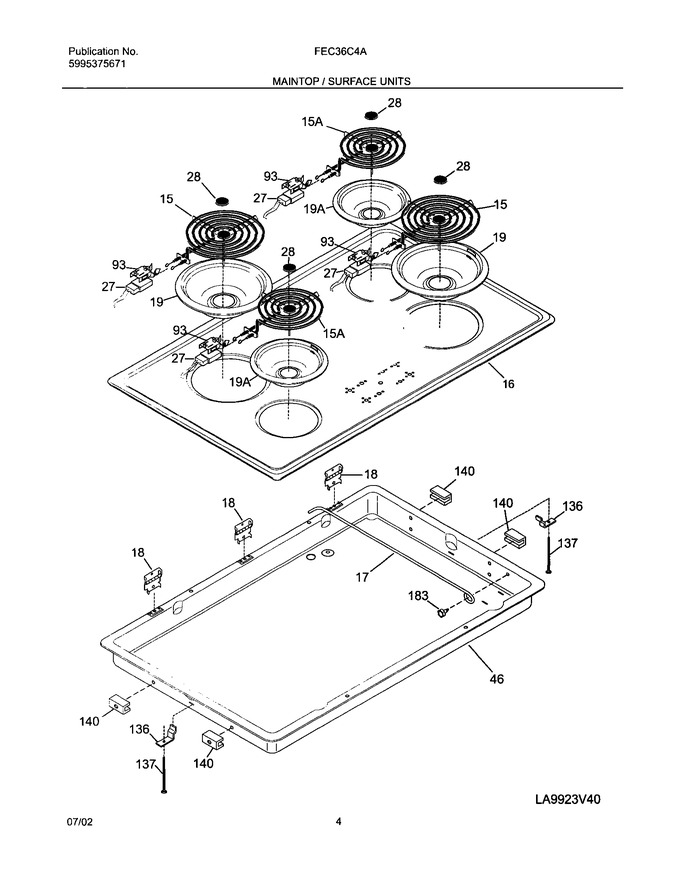

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159031		Main Top, White		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	318077011		Burner Box		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
140	318216000		Spacer,installation				$ 54.34
183	5304410665		Screw,10-32 X 5/8		Appelez-nous	-
F15	5308011964		Element,surface ,large/8 Inch ,(2) ,medallion Incl				$ 209.08
F15A	316439802		Element,surface ,small/6 Inch ,1250w ,medallion Incl   (Replaces: 5303299749)			Immediately	$ 192.78
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	RR500		Terminal Block, Surface Element   (Replaces: 5303323704)			Immediately	$ 9.42
NI	5303311366		Box & Wires Assy		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
