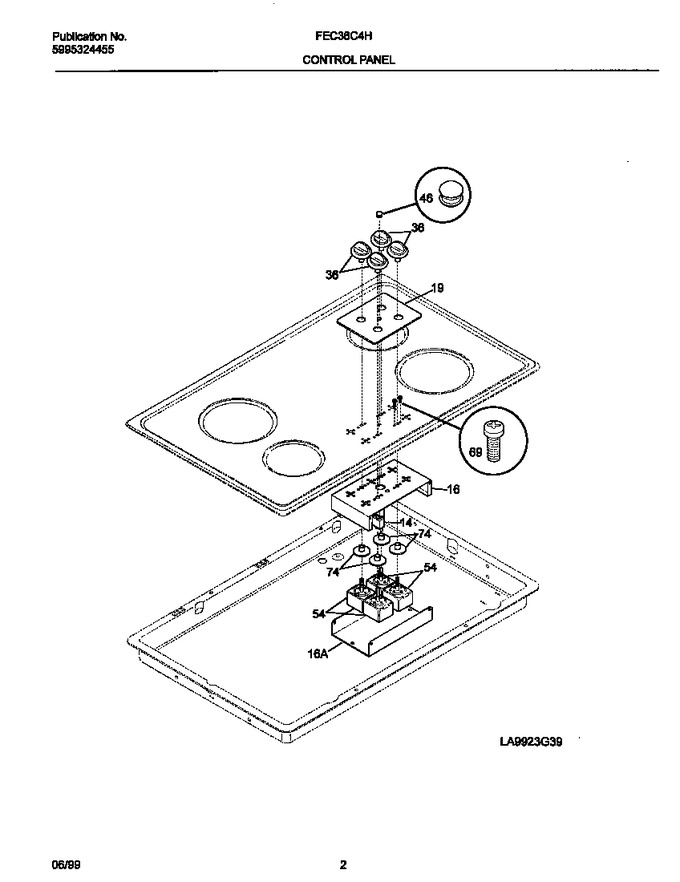

02 - Control Panel


03 - Maintop/elements


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303323991		Light-indicator, Hot Surface				$ 26.25
16	3200430		Cover, Instrument Mtg.		Appelez-nous	-
16	3200422		Plate, Instrument Mtg		Appelez-nous	-
19	318183501		Overlay Panel Almond		Appelez-nous	-
36	318164503		Knob-surface Unit,almond		Appelez-nous	-
46	5303200418		Lens-light		Appelez-nous	-
54	5303935086		Switch-surface Unit,small   (Replaces: 318120504)			Immediately	$ 51.95
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
74	318146010		Bushing, (4)				$ 17.16
*77560	5304410665		Screw,10-32 X 5/8		Appelez-nous	-
*77561	5303323140		Screw Ground		Appelez-nous	-
