New Model Search:

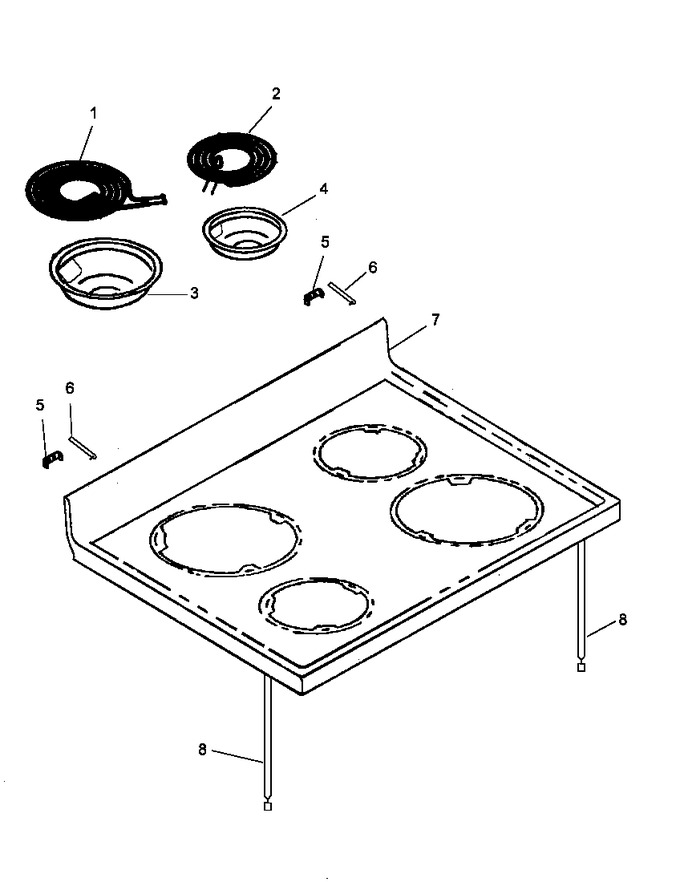

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10259865 | Element, 5 Turn 2600w 8`` (Replaces: 31734606) |
|
Immediately | $ 105.92 | ||||
| 2 | WPW10259868 | Element, 4 Turn (1500w) 6`` (Replaces: 31734602) |
|
Immediately | $ 112.28 | ||||
| 3 | WPW10290350 | Bowl, Burner 8`` (black) (Replaces: 308649B) |
|
Immediately | $ 15.25 | ||||
| 4 | W10290353RW | Burner, Bowl 6`` (black) (Replaces: 308648B) |
|
Immediately | $ 19.27 | ||||
| 5 | Y0306150 | Brkt, Hinge Strap Mtg |
|
- | |||||
| 6 | 0314373 | Hinge, Strap |
|
- | |||||
| 7 | 306899W | Main Top-electric Upswept |
|
- | |||||
| 8 | Y0315430 | Support, Maintop |
|
- | |||||
| NI | Y0307930 | Clip, Element Retainer |
|
- | |||||
| NI | 0091607 | Sub 71668 Pin |
|
- |
