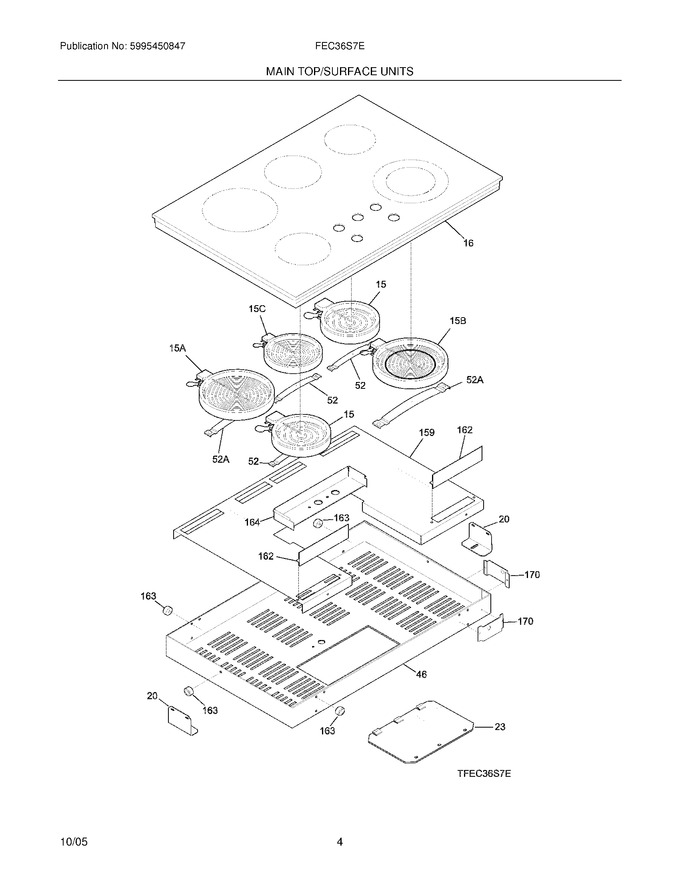

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079429		Main Top,black/stainless ,w/front Trim		Appelez-nous	-
20	318121902		Bracket,retainer				$ 47.03
23	5303297401		Panel,service		Appelez-nous	-
46	318077227		Burner Box		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
159	318125122		Deflector		Appelez-nous	-
162	318125211		Deflector		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
164	318125302		Plate,connection		Appelez-nous	-
170	318124910		Screen,thermal ,(4)		Appelez-nous	-
52A	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
F15	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 192.78
F15A	318198823		Element,surface ,9`` ,large ,2700 W				$ 235.73
F15B	318198925		Element,surface ,6/9 ,1200/2500w ,dual Radiant			Immediately	$ 283.81
F15C	318198825		Element,surface ,warmer ,100 W				$ 191.21
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318078531		Box & Wires Assy		Appelez-nous	-
NI	318199426		Harness,wiring ,main		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
