SELECT A DIAGRAM

01 - Backguard


02 - Cabinet


03 - Cavity


04 - Electrical Components


05 - Main Top


06 - Oven Door


07 - Storage Drawer

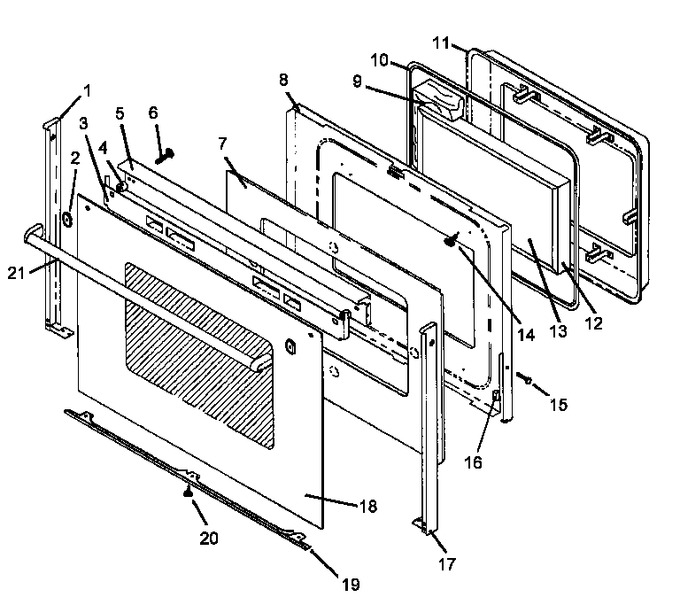

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309458W		End Cap, Lt (wht)		Appelez-nous	-
2	309882W		Spacer, Handle (wht)		Appelez-nous	-
3	317079W		Shield, Glass Heat		Appelez-nous	-
4	Y0309461		Bushing, Handle (nal)		Appelez-nous	-
5	31782204W		Trim, Door Top		Appelez-nous	-
6	31750516		Screw, No.10-24x11/4 (trs Ph Hd)		Appelez-nous	-
7	Y0309068		Shield, Heat		Appelez-nous	-
8	317028CG		Backer, Oven Door (elec)		Appelez-nous	-
9	Y0309772		Insulation,oven Door		Appelez-nous	-
10	31715902		Gasket, Oven Door (67``)				$ 13.97
11	317021CG		Pad, Oven Door		Appelez-nous	-
12	Y0309071		Frame, Window Pack		Appelez-nous	-
13	Y0309074		Glass Window 18`` X 11`` X 3/16``		Appelez-nous	-
14	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
15	Y0302648		Rivet, Pop		Appelez-nous	-
16	Y0309627		Bumper, Rubber		Appelez-nous	-
17	309457W		End Cap, Rt (wht)		Appelez-nous	-
18	309641W		Glass, Outer Oven Door (wht)		Appelez-nous	-
19	309460W		Support, Glass (wht)		Appelez-nous	-
20	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
21	309624W		Handle, Oven Door (wht)		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	0065790		Channel, Door Support		Appelez-nous	-
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
