SELECT A DIAGRAM

01 - Cover

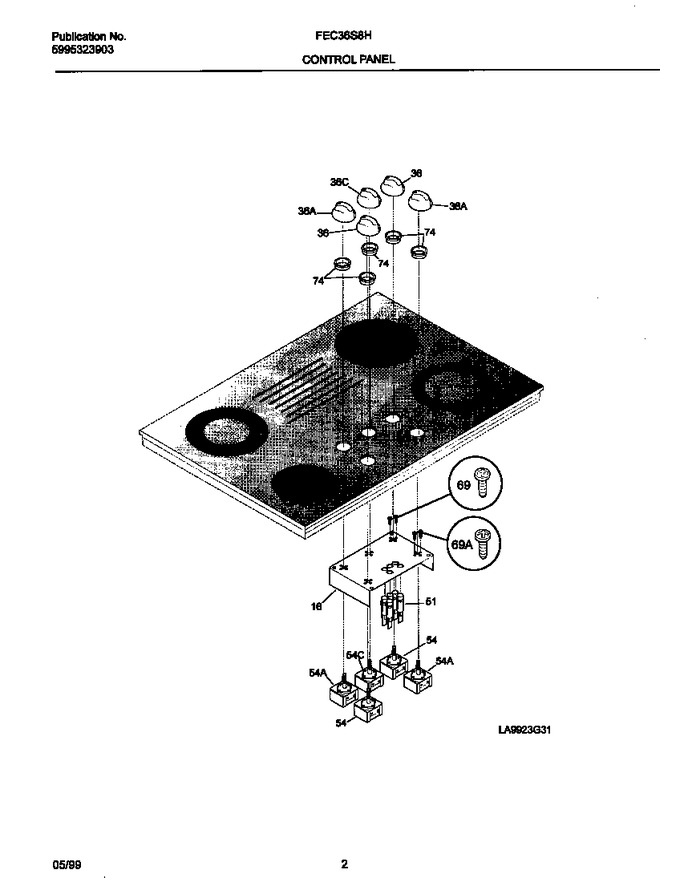

02 - Control Panel


03 - Maintop/elements


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318096320		Ox,instrument Mtg,16		Appelez-nous	-
36	318016308		Knob-surface Unit,black,(3),3		Appelez-nous	-
36	318016309		Knob-surface Unit,black,(2),3		Appelez-nous	-
36	318016331		Knob-surface Unit,black,36c		Appelez-nous	-
51	5303297484		Light-indicator,hot Surface,5		Appelez-nous	-
54	318078200		Switch-surface Unit,dual/1800 +		Appelez-nous	-
54	318120505		Switch-surface Unit,small/lar				$ 91.35
54	318078801		Switch-6`` Element,warmer, (54c)				$ 174.30
69	5303323137		Screw,8-32 X 1/4,ni   (Replaces: 5303305528)				$ 11.88
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
74	5303321205		Bushing,188		Appelez-nous	-
*03320	5303300265		Screw,8-18 X 1/2,chrome,ni				$ 15.17
*03321	5303323131		Screw,8-32 X 7/16,ni		Appelez-nous	-
*03322	5303323140		Screw,ground,10-32 X 0.375,ni		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
