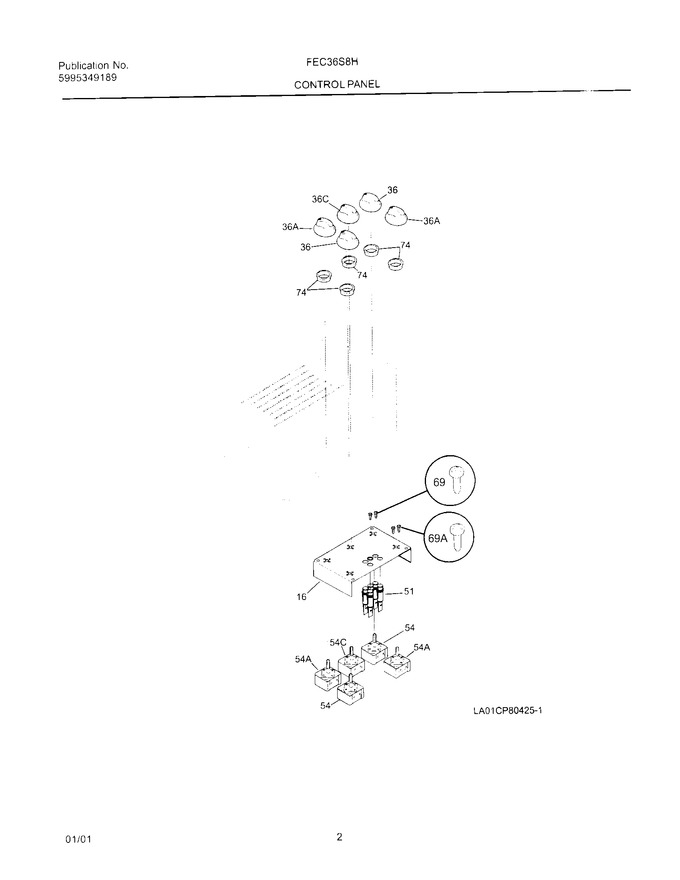

03 - Control Panel


05 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318096320		Box, Instrument Mtg		Appelez-nous	-
36	318016331		Knob-surface Unit,black		Appelez-nous	-
36	318164505		Knob,temp Control ,black				$ 88.20
36	318164511		Knob<black>		Appelez-nous	-
51	5303297484		Light-indicator, Hot Surface		Appelez-nous	-
54	318078801		Switch-6`` Element,warmer				$ 174.30
54	318120505		Switch-surface Unit, Small/large, (3)				$ 91.35
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
74	5303321205		Bushing		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303323131		Screw,8-32 X 7/16		Appelez-nous	-
