SELECT A DIAGRAM

01 - Cover


02 - Control Panel

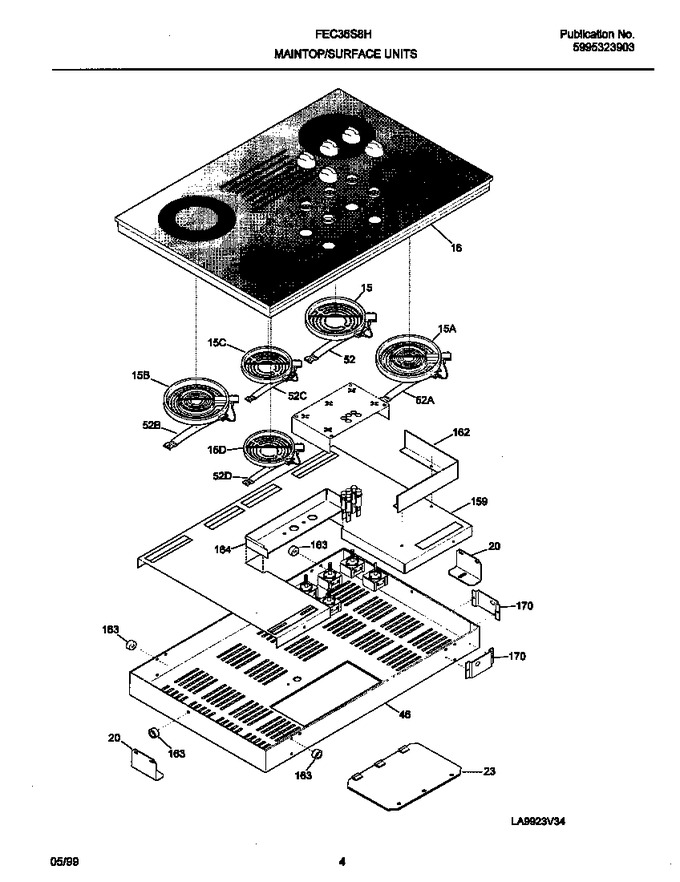

03 - Maintop/elements


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318050201		Element-surface,dual,1000w/19		Appelez-nous	-
15	318178102		Element Ay < 1700.w >,15		Appelez-nous	-
15	318178103		Element-surface W-zone,120v/1		Appelez-nous	-
16	318079324		Main Top,black,16		Appelez-nous	-
20	318121902		Bracket,20				$ 47.03
23	5303297401		Panel-access,23		Appelez-nous	-
46	318077221		Burner Box,46 +		Appelez-nous	-
52	318122006		Spring-element Mtg,1200w & 18				$ 66.25
52	318122007		Spring-element Mtg,2100w,larg				$ 53.45
52	318122004		Spring-element Mtg,700w & 210				$ 55.76
52	318122008		Spring-element Mtg,52c				$ 90.80
52	318122009		Spring-element Mtg,dual,1000w		Appelez-nous	-
159	318125121		Deflector,159		Appelez-nous	-
162	318125200		Deflector,162		Appelez-nous	-
163	08007817		Spacer,(2),188		Appelez-nous	-
164	318125301		Plate-connection,164		Appelez-nous	-
170	318124900		Screen-thermal,170		Appelez-nous	-
*03323	318078514		Box & Wires Assy,ni		Appelez-nous	-
*03324	5303323129		Screw,8 X 3/4,ni		Appelez-nous	-
*03325	5303323140		Screw,ground,10-32 X 0.375,ni		Appelez-nous	-
*03326	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
*03327	5303300265		Screw,8-18 X 1/2,chrome,ni				$ 15.17
15A	318178000		Element-surface,2100w,15a		Appelez-nous	-
15B	318198817		Element-surface,radiant,small   (Replaces: 318178100)			Immediately	$ 192.78

    View Diagram in Separate Window       Print Part List
