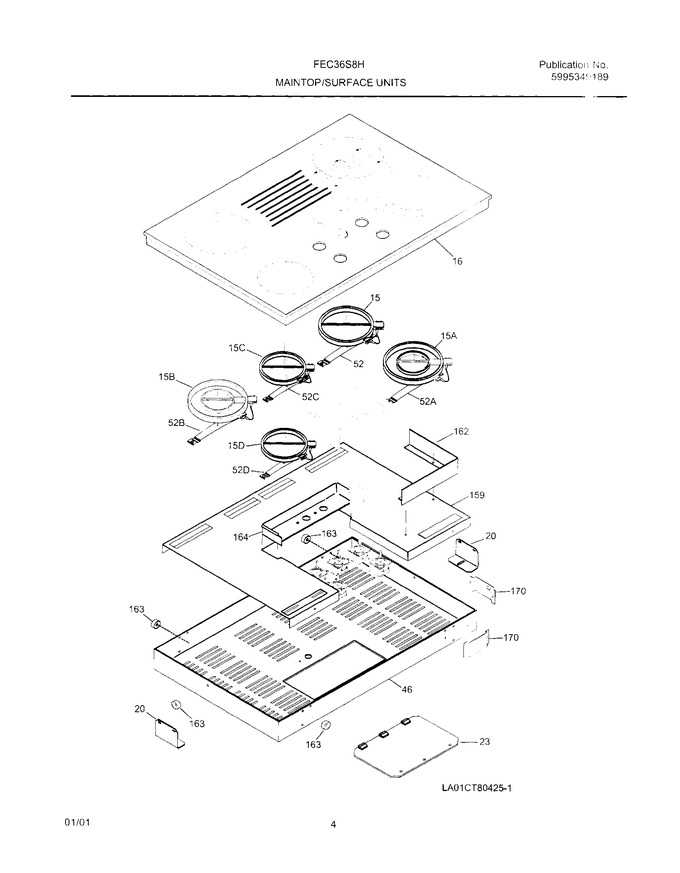

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318178102		Element Ay < 1700.w >		Appelez-nous	-
15	318178103		Element-surface W-zone,120v/100w		Appelez-nous	-
15	318178000		Element-surface,2100w		Appelez-nous	-
15	318050202		Element Ay <6``-9``><1900w>		Appelez-nous	-
16	318079324		Main Top,black		Appelez-nous	-
20	318121902		Bracket				$ 47.03
23	5303297401		Panel-access		Appelez-nous	-
46	318077221		Burner Box		Appelez-nous	-
52	318122008		Spring-element Mtg				$ 90.80
52	318122009		Spring-element Mtg,dual ,1000w/1900w		Appelez-nous	-
52	318122007		Spring-element Mtg,2100w ,large				$ 53.45
52	318122004		Spring-element Mtg,700w & 2100w				$ 55.76
52	318122006		Spring-element Mtg,1200w & 1800w ,small				$ 66.25
159	318125121		Deflector		Appelez-nous	-
162	318125200		Deflector		Appelez-nous	-
163	08007817		Spacer, (2)		Appelez-nous	-
164	318125301		Plate-connection		Appelez-nous	-
170	318124900		Screen-thermal		Appelez-nous	-
NI	5303323129		Screw,8 X 3/4		Appelez-nous	-
NI	318078514		Box & Wires Assy		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303323131		Screw,8-32 X 7/16		Appelez-nous	-
NI	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
