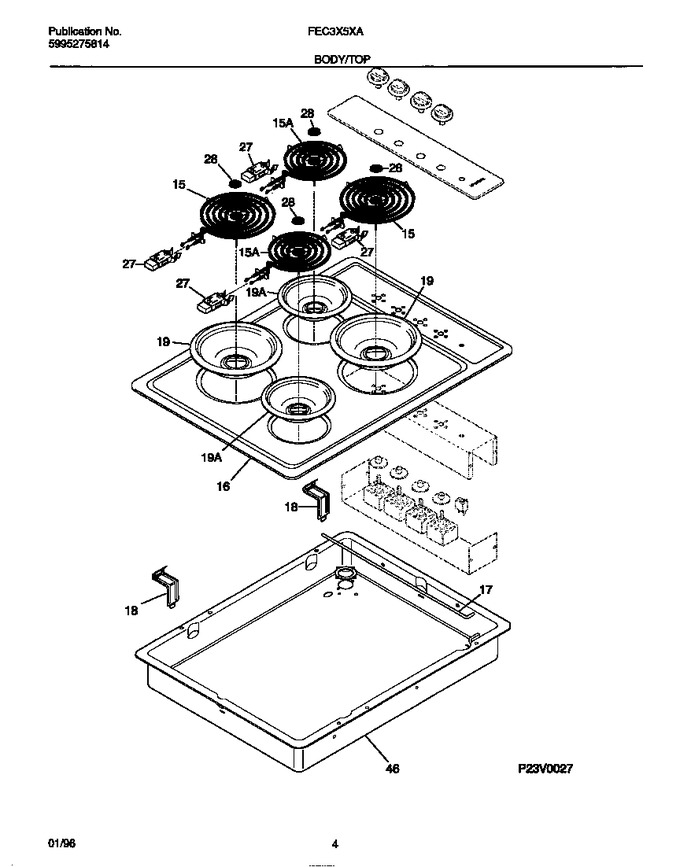

03 - Body/top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303301460		Element-surface, Large		Appelez-nous	-
15	5303301459		Element-surface, Small		Appelez-nous	-
16	5303301400		Main Top, Chrome		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	5303311269		Hinge-main Top, (2)		Appelez-nous	-
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303013588)			Immediately	$ 9.85
19	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	3016816		Burner Box		Appelez-nous	-
