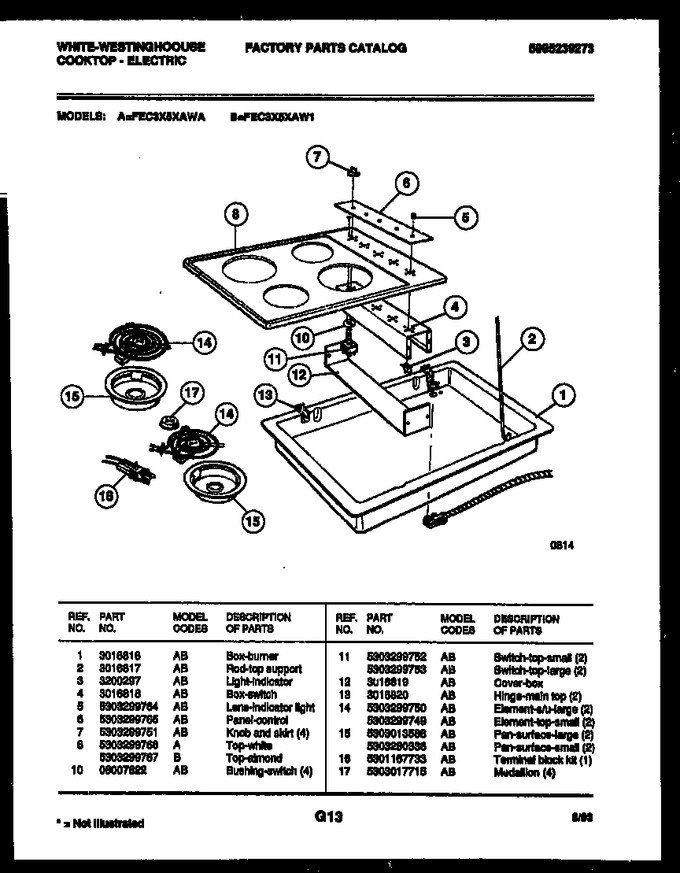

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016816 | Box-burner |
|
- | |||||
| 2 | 3016817 | Rod-top Support |
|
- | |||||
| 3 | 3200297 | Light, Indicator |
|
- | |||||
| 4 | 3016818 | Box-switch |
|
- | |||||
| 5 | 318228310 | Lens-indicator Light (Replaces: 5303299764) |
|
Immediately | $ 22.91 | ||||
| 6 | 5303299765 | Panel-control |
|
- | |||||
| 7 | 5303299751 | Knob And Skirt (4) |
|
- | |||||
| 8 | 5303299766 | Top-white |
|
- | |||||
| 8 | 5303299767 | Top-almond |
|
- | |||||
| 10 | 08007822 | Bushing, Switch (4) |
|
- | |||||
| 11 | 5303299752 | Switch, Top, Small (2) |
|
- | |||||
| 11 | 5303299753 | Switch, Top, Large (2) |
|
- | |||||
| 12 | 3016819 | Cover-box |
|
- | |||||
| 13 | 3016820 | Hinge - Main Top (2) |
|
- | |||||
| 14 | 5303299750 | Element-s/u-large (2) |
|
- | |||||
| 14 | 316439802 | Element, Top, Small (2) (Replaces: 5303299749) |
|
Immediately | $ 192.78 | ||||
| 15 | 316048413 | Pan, Surface, Large (2) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 15 | 316048414 | Pan, Surface, Small (2) (Replaces: 5303280336) |
|
Immediately | $ 16.11 | ||||
| 16 | 5303935058 | Terminal Block Kit (1) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 17 | 5303017715 | Medallion (4) |
|
$ 64.46 |
