SELECT A DIAGRAM

01 - Cover


02 - Control Panel

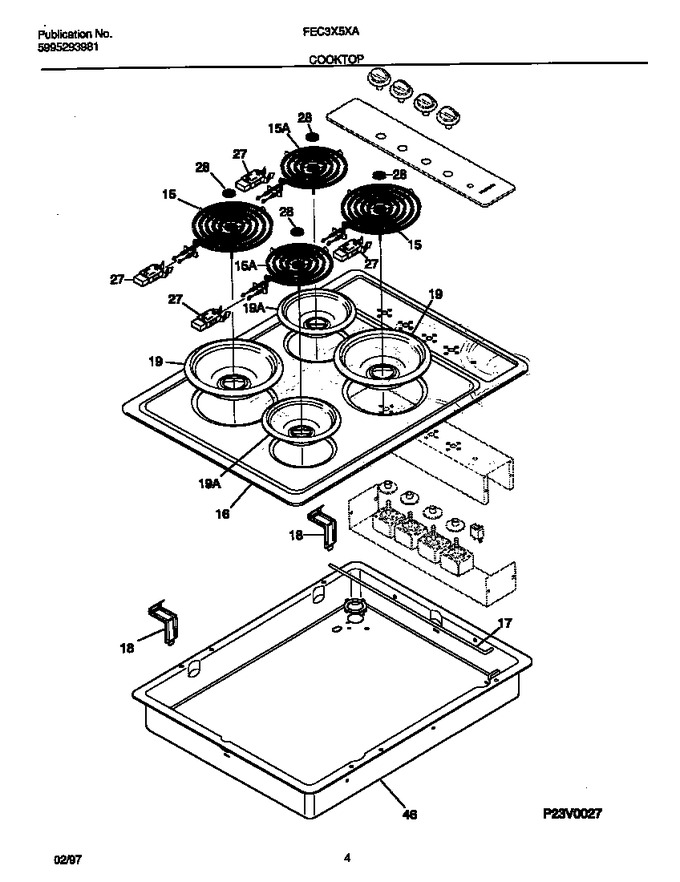

03 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5308011964		Element-surface, Large/8 Inch, (2)				$ 209.08
15	316439802		Element-surface, Small/6 Inch, (2)   (Replaces: 5303299749)			Immediately	$ 192.78
16	318159021		Main Top, White				$ 388.24
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
19	316048413		Pan-surface Element, Large/8 Inch, (2)   (Replaces: 5303013588)			Immediately	$ 9.85
19	316048414		Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336)			Immediately	$ 16.11
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	318077401		Burner Box		Appelez-nous	-
*23721	5303311532		Screw, Back		Appelez-nous	-
*23722	5303308449		Fastener		Appelez-nous	-
*23723	5301506869		Clamp-cable		Appelez-nous	-
*23724	5303323364		Box & Wires Assy		Appelez-nous	-
27A	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
27B	318122500		Support, Terminal Block, (4) (not Illustrated)		Appelez-nous	-
27C	5303300195		Screw, 10-32 X 3/8, Terminal Block, (2) (not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
