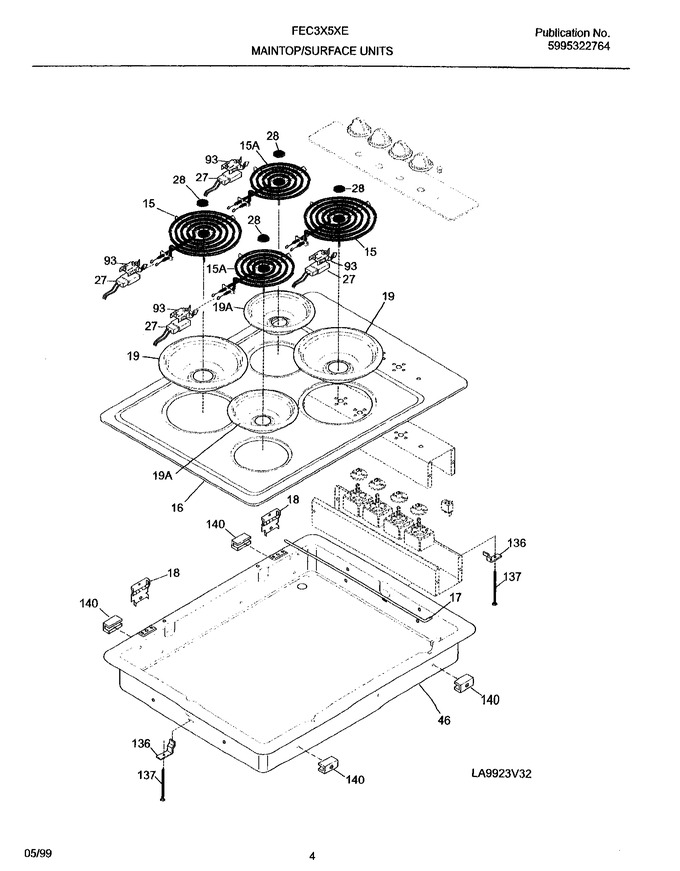

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159022		Main Top, Almond		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge Main Top				$ 51.98
19	316048413		Pan-surface Element,large/8 Inch   (Replaces: 318067010)			Immediately	$ 9.85
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	318077401		Burner Box		Appelez-nous	-
93	318122500		Bracket,terminal Block		Appelez-nous	-
136	5303935029		Support/support				$ 61.79
137	5303323138		Screw, 10-24 X 2 1/2				$ 14.13
140	3205315		Support Installation		Appelez-nous	-
19A	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
F15	5308011964		Element-surface, Large/8 Inch				$ 209.08
F15A	316439802		Element-surface, Small/6 Inch, (2)   (Replaces: 5303299749)			Immediately	$ 192.78
NI	5303324176		Shoulder Screw 10-24		Appelez-nous	-
NI	5301506869		Clamp-cable		Appelez-nous	-
NI	5303308449		Fastener		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4		Appelez-nous	-
NI	5304403070		Screw, 6-32 X 5/16		Appelez-nous	-
NI	5303323364		Box & Wires Assy		Appelez-nous	-
NI	154079601		Keps Nut 10-24   (Replaces: 3201885)				$ 0.41
NI	5303300195		Screw, Terminal Block		Appelez-nous	-
