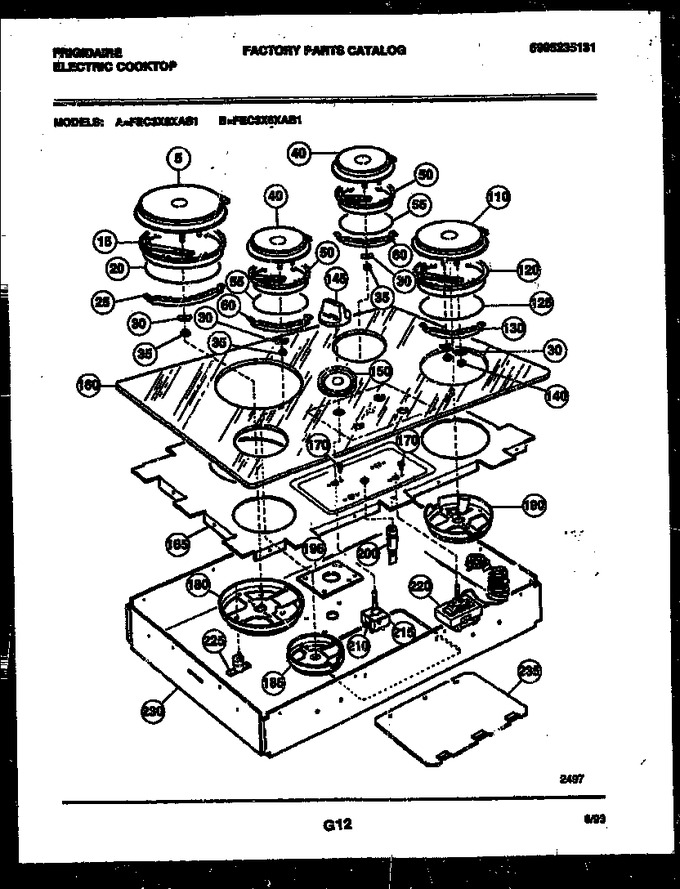

02 - Cooktop Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303297144		Element Assembly (2600 Watts), Large		Appelez-nous	-
15	3051883		Retainer, Large		Appelez-nous	-
20	08014746		Seal, Element, Large		Appelez-nous	-
25	3051120		Bracket, Fixing, Large		Appelez-nous	-
30	3051846		Washer, Spring (5)		Appelez-nous	-
35	08014256		Nut		Appelez-nous	-
40	5303297145		Element Assembly (1500 Watts), Small		Appelez-nous	-
50	5303051881		Retainer, Small (2)		Appelez-nous	-
55	08014744		Seal, Element, Small		Appelez-nous	-
60	3051610		Bracket, Fixing, Sm (2)		Appelez-nous	-
110	5303297146		Element Assy. (2600 Watts), Medium Auto		Appelez-nous	-
120	5303051882		Retainer, Medium		Appelez-nous	-
125	08014745		Seal, Element, Auto		Appelez-nous	-
130	08014758		Bracket, Fixing, Med.		Appelez-nous	-
140	08014255		Nut		Appelez-nous	-
145	5303297391		Knob-white (4)		Appelez-nous	-
150	5303297393		Skirt, Knob-white (3)		Appelez-nous	-
150	5303297394		Skirt, Knob-white (1)		Appelez-nous	-
160	5303297398		Glass Cooktop-white		Appelez-nous	-
165	5303285406		Plate		Appelez-nous	-
170	5303292005		Screw (6)		Appelez-nous	-
180	5303285407		Pan		Appelez-nous	-
185	5303285408		Pan		Appelez-nous	-
190	5303285409		Pan		Appelez-nous	-
195	08014750		Connection Plate		Appelez-nous	-
200	08014749		Pilot Light		Appelez-nous	-
210	5303285410		Infinite Switch (1500 Watts), Small		Appelez-nous	-
215	5303285411		Infinite Switch (2600 Watts), Large		Appelez-nous	-
220	5303285412		Infinite Switch, Auto		Appelez-nous	-
225	5303202475		Switch, Thermal Protector (4)		Appelez-nous	-
230	5303297400		Burner Box		Appelez-nous	-
235	5303297401		Service Panel		Appelez-nous	-
*78838	5309951550		Cleaner, Glass		Appelez-nous	-
*78839	204873-1110		Wiring Diagram--(not For Purchase)		Appelez-nous	-
*78839	5308016255		Polish, Solid Element				$ 38.85
