SELECT A DIAGRAM

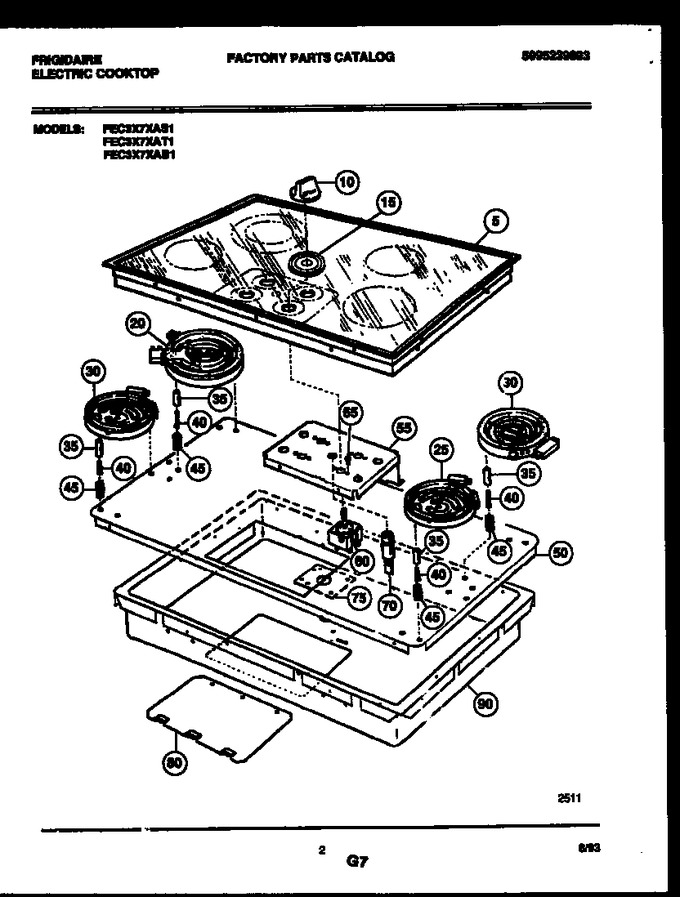

02 - Cooktop Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5303300031 | Glass Cooktop-black |
|
- | |||||
| 10 | 5303297395 | Knob-black (4) |
|
- | |||||
| 15 | 5303297428 | Skirt-knob-black (1) |
|
- | |||||
| 15 | 5303297396 | Skirt, Knob-black (3) |
|
- | |||||
| 20 | 5303297140 | Element Assembly (2000/1000w) |
|
- | |||||
| 25 | 5303300028 | Element Assembly (2100w) |
|
- | |||||
| 30 | 5303297141 | Element Assembly (1200w) |
|
- | |||||
| 35 | 5303297476 | Spacer |
|
- | |||||
| 40 | 5303297477 | Screw |
|
$ 15.17 | |||||
| 45 | 5303297478 | Spring |
|
- | |||||
| 50 | 5303297479 | Support-elements |
|
- | |||||
| 55 | 5303297480 | Plate-switch Mounting |
|
- | |||||
| 60 | 5303297482 | Infiinite Switch (for Element 1200w) |
|
- | |||||
| 60 | 5303297483 | Infiinite Switch (for Element 2100w) |
|
- | |||||
| 60 | 5303297481 | Infiinite Switch (for Element 2000/1000w) |
|
- | |||||
| 65 | 5303292005 | Screw (8) |
|
- | |||||
| 70 | 5303297484 | Indicator Light |
|
- | |||||
| 75 | 08014750 | Connection Plate |
|
- | |||||
| 80 | 5303297485 | Service Panel |
|
- | |||||
| 90 | 5303297486 | Bunrer Box |
|
- | |||||
| *82156 | 5309951550 | Cleaner-cooktop |
|
- | |||||
| *82156 | 204873-1100 | Wiring Diagram (not For Purchase) |
|
- |
