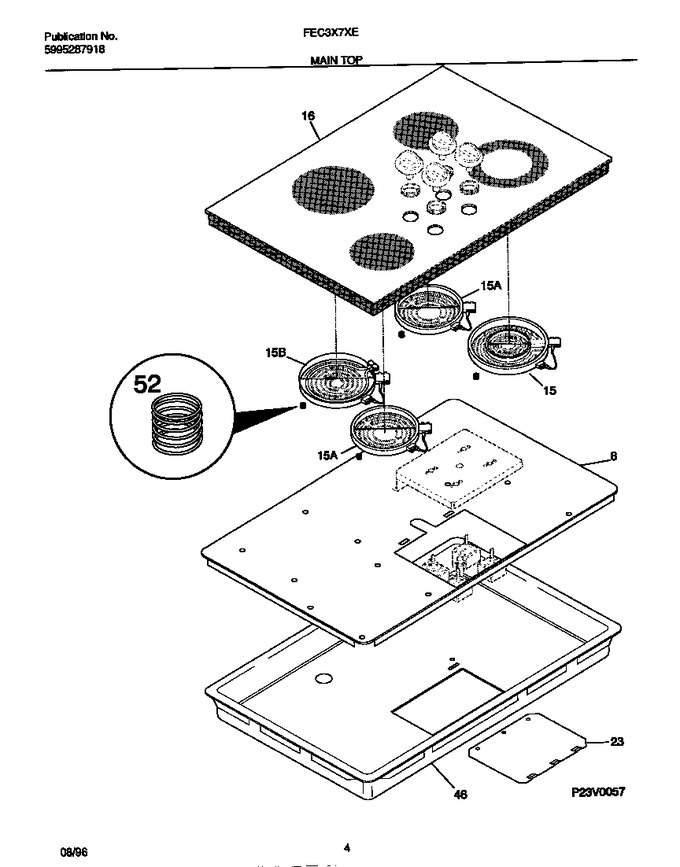

03 - Main Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318080211		Plate-cooktop		Appelez-nous	-
15	318198817		Element-surface, 1200 W   (Replaces: 318050100)			Immediately	$ 192.78
15	318198834		Element-surface, 2100 W, Large/8 Inch   (Replaces: 316010204)				$ 205.36
15	318050200		Element-surface, 2000/1000 W		Appelez-nous	-
16	318079310		Main Top		Appelez-nous	-
23	5303297401		Panel-access		Appelez-nous	-
46	318077211		Burner Box		Appelez-nous	-
57	318125300		Plate-mounting		Appelez-nous	-
*19122	318125200		Screen-thermal		Appelez-nous	-
*19123	318125110		Deflector		Appelez-nous	-
52A	318122000		Spring-element Mtg, 1200w		Appelez-nous	-
52B	318122003		Spring-element Mtg, 2100w/dual		Appelez-nous	-
