SELECT A DIAGRAM

01 - Cover

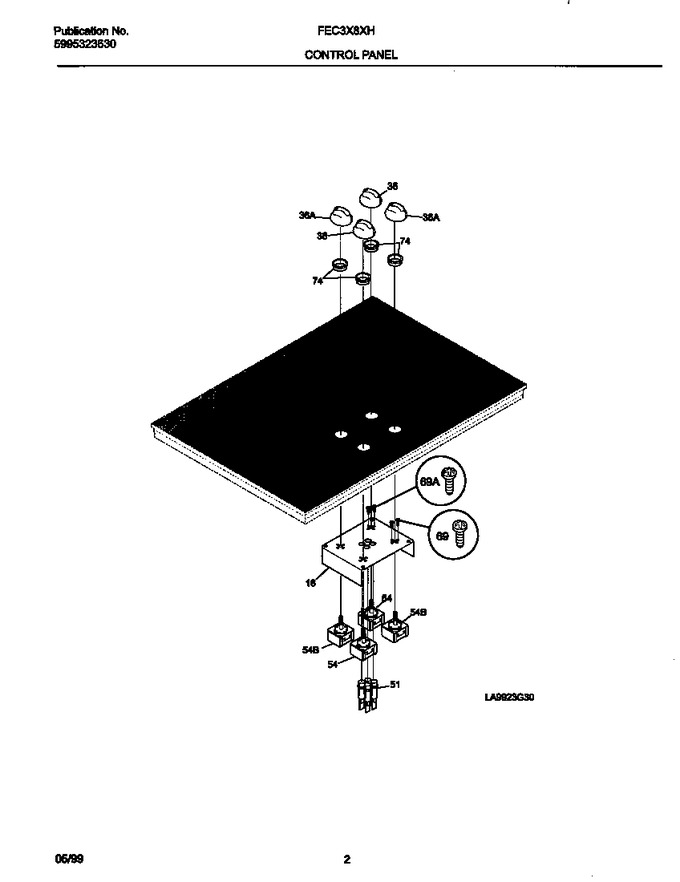

02 - Control Panel


03 - Top/burners


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318096314		Plate,instrument Mtg		Appelez-nous	-
36	318016309		Knob-surface Unit, Black, (2)		Appelez-nous	-
36	318016308		Knob-surface Unit, Black, (3)		Appelez-nous	-
51	5303297484		Light-indicator, Hot Surface		Appelez-nous	-
54	318120505		Switch-surface Unit, Small/large, (3)				$ 91.35
54	318078200		Switch-surface Unit, Dual/1800w, (1)		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
69	5303323137		Screw,( 8-32x3/16) ,switch Mtg   (Replaces: 5303305528)				$ 11.88
74	5303321205		Bushing, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
