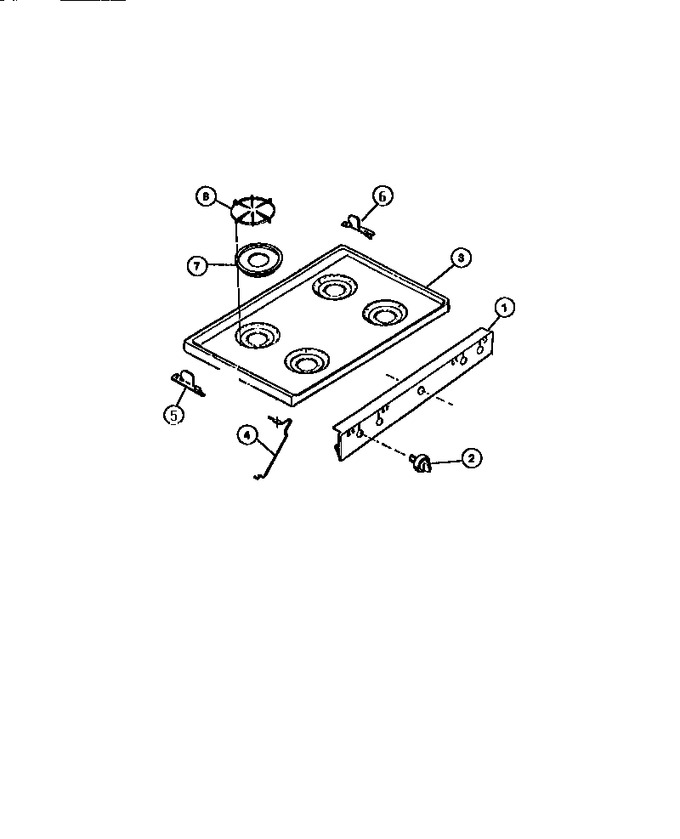

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131962 | Panel, Manifold |
|
- | |||||
| 2 | 3131581 | Knob, Top Valve (4) |
|
- | |||||
| 3 | 3934003 | Main Top, White |
|
- | |||||
| 4 | 618T038P05 | Rod, Main Top Support (2) |
|
- | |||||
| 5 | 3011558 | Bracket, Main Top, Hinge, Left Hand |
|
- | |||||
| 6 | 3011559 | Bracket, Main Top, Hinge, Right Hand |
|
- | |||||
| 7 | 3131115 | Pan, Burner (4) |
|
- | |||||
| 8 | 283T013W01-18 | Grate (4) |
|
- | |||||
| 8A | 612T124P01 | Retainer, Wire (non-illustrated) |
|
- |
