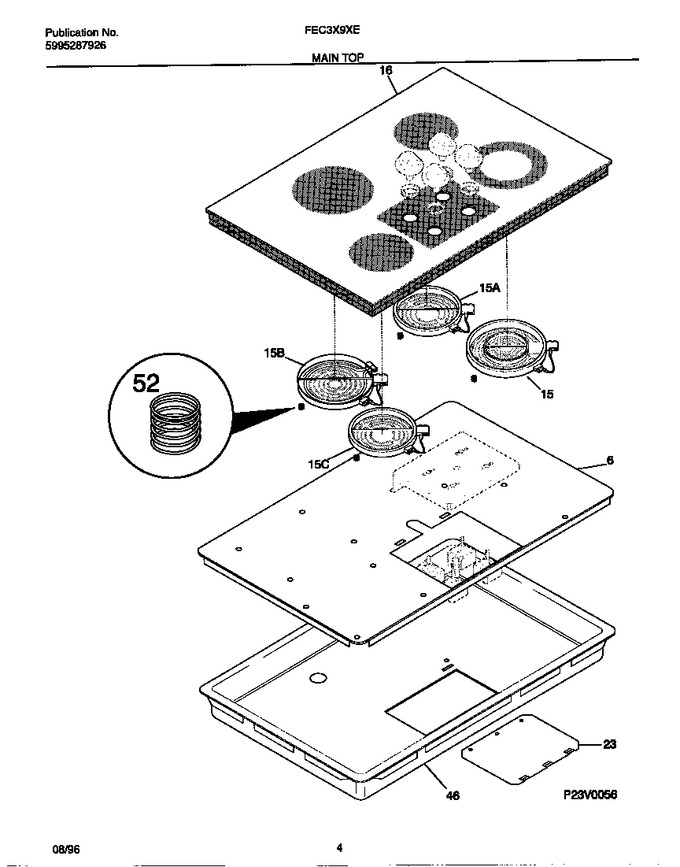

03 - Main Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 318080211 | Plate-cooktop |
|
- | |||||
| 15 | 318050200 | Element-surface, 2000/1000 W |
|
- | |||||
| 15 | 318198817 | Element-surface, 1200 W (Replaces: 318050100) |
|
Immediately | $ 192.78 | ||||
| 15 | 5303297143 | Element-surface, Halogen, Large/8 Inch, W/limit Switch |
|
- | |||||
| 15 | 5303297142 | Element-surface, Halogen, Small/6 Inch, W/limit Switch |
|
- | |||||
| 16 | 318079312 | Main Top |
|
- | |||||
| 23 | 5303297401 | Panel-access |
|
- | |||||
| 46 | 318077211 | Burner Box |
|
- | |||||
| *45641 | 08007817 | Spacer, (2) |
|
- | |||||
| *45642 | 318125110 | Deflector |
|
- | |||||
| *45643 | 318125200 | Screen-thermal |
|
- | |||||
| 52A | 318122000 | Spring-element Mtg, 1800w |
|
- | |||||
| 52B | 318122003 | Spring-element Mtg, 2200w |
|
- |
