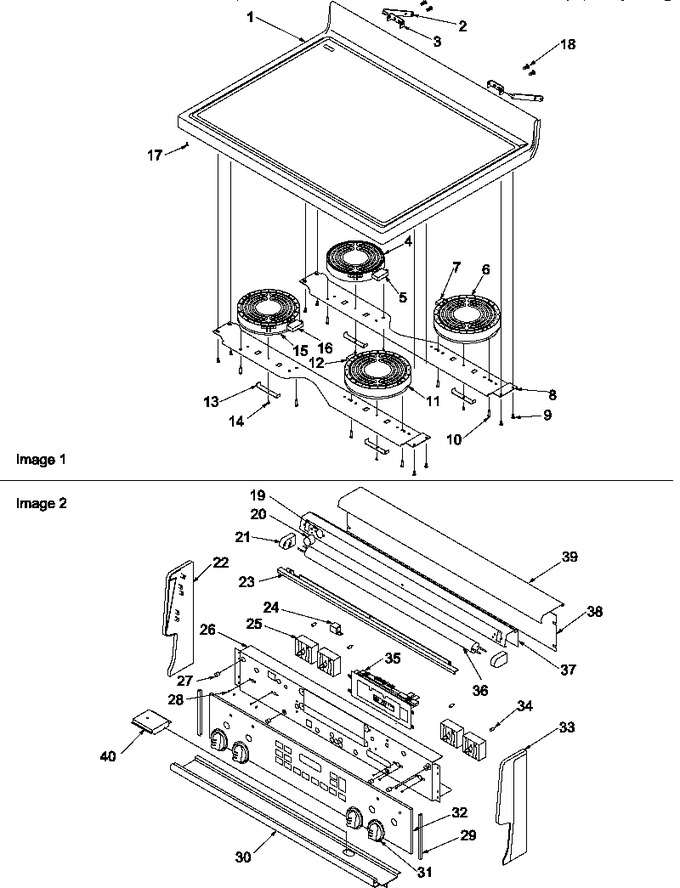

1	315207W		Assy, Top (por7500 White)		Appelez-nous	-
2	0314373		Hinge, Strap		Appelez-nous	-
3	Y0306150		Brkt, Hinge Strap Mtg		Appelez-nous	-
4	W10823708		Element, Ribbon (2000 Watts)   (Replaces: Y0314912)				$ 307.60
5	0316688		Limiter (2000 Watts)		Appelez-nous	-
6	W10823699		Element, Ribbon (1500 Watts)   (Replaces: Y0314911)			Immediately	$ 145.67
7	0316687		Limiter (1500 Watts)		Appelez-nous	-
8	Y0316248		Brkt, Element		Appelez-nous	-
9	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
10	31750715		Screw, Shoulder Ab 6-20 X .825		Appelez-nous	-
11	Y0314910		Element, Ribbon (2500w)		Appelez-nous	-
12	0316700		Limiter (600 Degree C)		Appelez-nous	-
13	Y0306683		Spring, Element		Appelez-nous	-
14	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
15	Y0314909		Element, Ribbon (1200 Watts)		Appelez-nous	-
16	0316686		Limiter (1200 Watts)		Appelez-nous	-
17	31717001		Spacer, Snap-in		Appelez-nous	-
18	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
19	Y0304560		Start Holdr-flour.lmp		Appelez-nous	-
20	0071920		Starter, Flourescent		Appelez-nous	-
21	Y0304559		Lamp Holder-floures		Appelez-nous	-
22	306396W		End Cap, Bkgd Lh		Appelez-nous	-
23	0304977		Light Diffuser Backguard-clear		Appelez-nous	-
24	Y0071869		Ballast		Appelez-nous	-
25	WP74011243		Switch, Infinite   (Replaces: Y0315563)				$ 115.88
26	0314556		Panel, Bkgd Control		Appelez-nous	-
27	Y0314643		Bumper, Rubber		Appelez-nous	-
28	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
29	314636W		Channel, Glass Mylar		Appelez-nous	-
30	315313W		Trim, Lwr Bkgd		Appelez-nous	-
31	315122W		Knob, Inf. Switch		Appelez-nous	-
32	314476W		Cont.,mylar Touch (white)				$ 216.69
33	306397W		End Caps, Bkgd Rh		Appelez-nous	-
34	Y0071820		Indicator Light		Appelez-nous	-
35	Y0315087		Erc Conv, Membrane		Appelez-nous	-
36	WPY0067945		Lamp, Flourescent   (Replaces: Y0067945)				$ 29.33
37	307211B		Bracket, Light		Appelez-nous	-
38	0309137		Cover, Backguard		Appelez-nous	-
39	305296W		Top Trim Backguard		Appelez-nous	-
40	0314604		Flue Cap		Appelez-nous	-
NI	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	Y0061164		Screw No.8 - 18 X .250		Appelez-nous	-
NI	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-
NI	Y0305391		Collar, Starter Socket		Appelez-nous	-
NI	Y0076035		Screw, No.8-18 X 7/8 Pph		Appelez-nous	-
NI	Y0314520		Harness, Wiring		Appelez-nous	-
