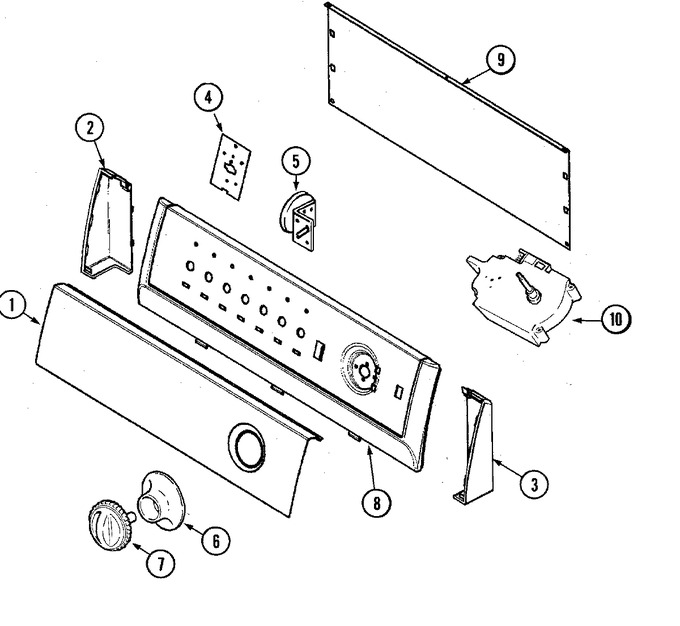

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001917		Panel, Control (wht)	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
2	21001546		Endcap, Panel (lt-wht)	10	Appelez-nous	-
3	21001547		Endcap, Panel (rt-wht)	10	Appelez-nous	-
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	21001517		Shield, Control (1 Pos.)	10			$ 4.83
5	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
5	21001918		Switch, Pressure (fixed)	10	Appelez-nous	-
6	21001520		Skirt, Timer Knob (wht)	10	Appelez-nous	-
7	21001526		Knob, Timer (wht)	10			$ 24.05
8	21001552		Frame (wht), Control Panel	10	Appelez-nous	-
9	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
9	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
10	21001545		Timer	10	Appelez-nous	-
NI	21001919		Harness, Wiring	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
