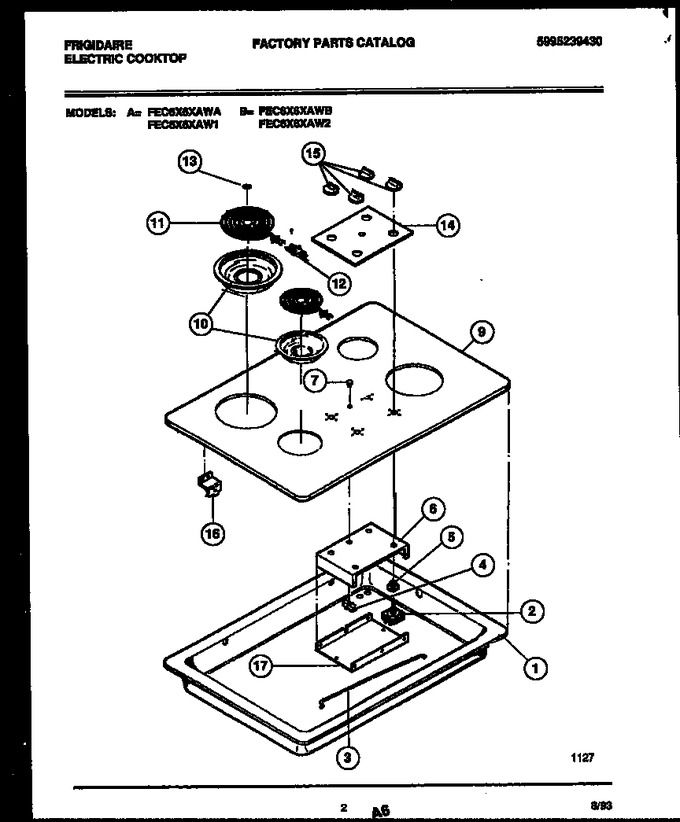

02 - Cooktop Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200421 | Burner Box |
|
- | |||||
| 2 | 5303299752 | Switch, Top, Small (2) |
|
- | |||||
| 3 | 3016817 | Rod-top Support |
|
- | |||||
| 4 | 5308008876 | Indicator Light, Oven |
|
- | |||||
| 5 | 08007822 | Bushing, Switch (4) |
|
- | |||||
| 6 | 3200422 | Box-switch |
|
- | |||||
| 7 | 5303200418 | Lens, Indicator Light |
|
- | |||||
| 9 | 5303299881 | Cooktop-white |
|
- | |||||
| 10 | 316048413 | Pan, Surface, Lge (2) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 11 | 5303299750 | Element, Top, Large (2) |
|
- | |||||
| 12 | 5303935058 | Terminal Block Kit (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 13 | 5303017715 | Medallion (4) |
|
$ 64.46 | |||||
| 14 | 5303299755 | Panel, Control |
|
- | |||||
| 15 | 5303299751 | Knob & Skirt (4) |
|
- | |||||
| 16 | 3016820 | Hinge - Main Top (2) |
|
- | |||||
| 17 | 3200430 | Cover, Switch Box |
|
- | |||||
| *82214 | 210111-1070 | Wiring Diagram--(not For Purchase) |
|
- | |||||
| 10A | 316048414 | Pan, Surface, Sm (2) (Replaces: 5303280336) |
|
Immediately | $ 16.11 | ||||
| 11A | 316439802 | Element, Top, Small (2) (Replaces: 5303299749) |
|
Immediately | $ 192.78 | ||||
| 2A | 5303299753 | Switch, Top, Large (2) |
|
- |
