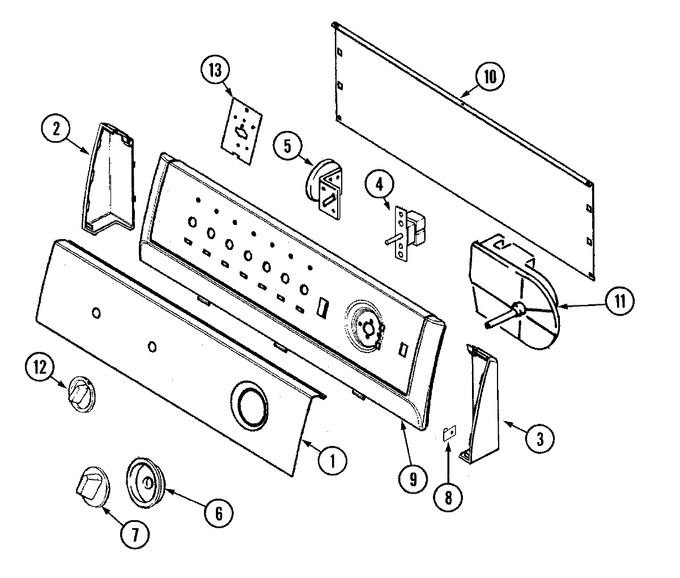

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001626		Panel, Control	10	Appelez-nous	-
2	21001629		Endcap, Panel (lt-wht)	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	21001636		Endcap, Panel (rt-wht)	10	Appelez-nous	-
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	21001686		Switch, Water Temperature	10	Appelez-nous	-
5	21001882		Switch, Pressure (emz)	20	Appelez-nous	-
5	21001625		Switch, Water Level	10	Appelez-nous	-
5	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
6	21001520		Skirt, Timer Knob (wht)	10	Appelez-nous	-
7	21001526		Knob, Timer (wht)	10			$ 24.05
8	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
9	21001635		Frame (wht)	10	Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
10	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
10	25-7853		Retaining Ring	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	21001699		Timer	10	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
12	21001544		Knob, Selector (wht)	10	Appelez-nous	-
13	21001517		Shield, Control (1 Pos.)	10			$ 4.83
13	53-2504		Spacer, Control Shield	10	Appelez-nous	-
NI	21001619		Manual, Use & Care	10	Appelez-nous	-
NI	12002417		Wire Kit (herrin Laundry)	10			$ 26.25
NI	21001457		Fuse	10			$ 22.46
NI	21001458		Holder, Fuse	10	Appelez-nous	-
NI	21001725		Manual, Use & Care (span)	10	Appelez-nous	-
NI	21001801		Harness, Wire	10	Appelez-nous	-
NI	21001945		Harness, Wiring	20	Appelez-nous	-
