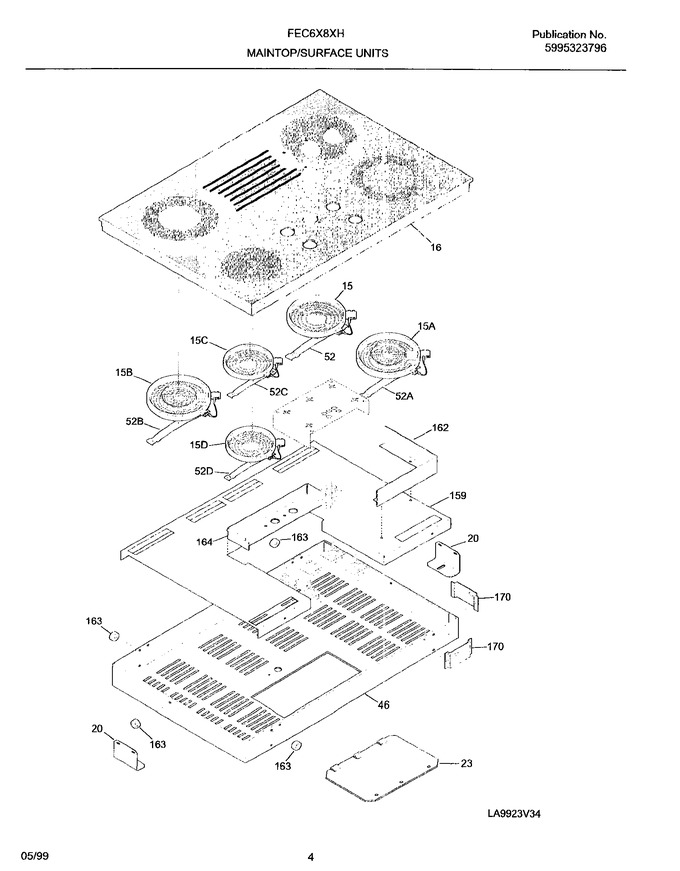

03 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079323		Glass Maintop & Frame Assy		Appelez-nous	-
20	318121902		Bracket				$ 47.03
23	5303297401		Panel-access		Appelez-nous	-
46	318077221		Burner Box		Appelez-nous	-
52	318122008		Spring-element Mtg				$ 90.80
159	318125121		Deflector		Appelez-nous	-
162	318125200		Deflector		Appelez-nous	-
163	08007817		Spacer		Appelez-nous	-
164	318125301		Plate-connection		Appelez-nous	-
170	318124900		Support-thermal		Appelez-nous	-
52A	318122009		Spring-element Mtg		Appelez-nous	-
52B	318122007		Spring Element Mtg				$ 53.45
52C	318122004		Spring-element Mtg				$ 55.76
52D	318122006		Spring Element Mtg				$ 66.25
F15	318178102		Element Surface 1700w		Appelez-nous	-
F15A	318050201		Element-surface, 1000w/1900w		Appelez-nous	-
F15B	318178000		Element-surface, 700/2100w		Appelez-nous	-
F15C	318178103		Element-warmer		Appelez-nous	-
F15D	318198817		Element-surface,1200w   (Replaces: 318178100)			Immediately	$ 192.78
NI	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
NI	318078514		Box & Wires Assy		Appelez-nous	-
NI	5303323140		Screw Ground		Appelez-nous	-
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	5303323129		Screw,8 X 3/4		Appelez-nous	-
