Diagram # Part Number Description Series Availability Ships Price Add to Cart
16 318096320 Plate Instrument Mtg Appelez-nous -
36 318016300 Knob-surface White Appelez-nous -
69 5303288565 Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134) Special Order $ 3.12

74 5303321205 Bushing Appelez-nous -
36A 318016301 Knob-surface White Appelez-nous -
36C 318016330 Knob-surface White Appelez-nous -
69A 5303323137 Screw,8-32 X 1/4   (Replaces: 5303305528) Special Order $ 11.88

F51 5303297484 Light-indicator, Hot Surface Appelez-nous -
F54 318120505 Switch-surface Unit,small Special Order $ 91.35

F54A 318078200 Switch-surface Unit Appelez-nous -
F54C 318078801 Switch-6`` Element Special Order $ 174.30

NI 5303300265 Screw,8-18 X 1/2 ,chrome Special Order $ 15.17

NI 5303323131 Screw,8-32 X 7/16 Appelez-nous -
NI 5303323140 Screw Ground Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

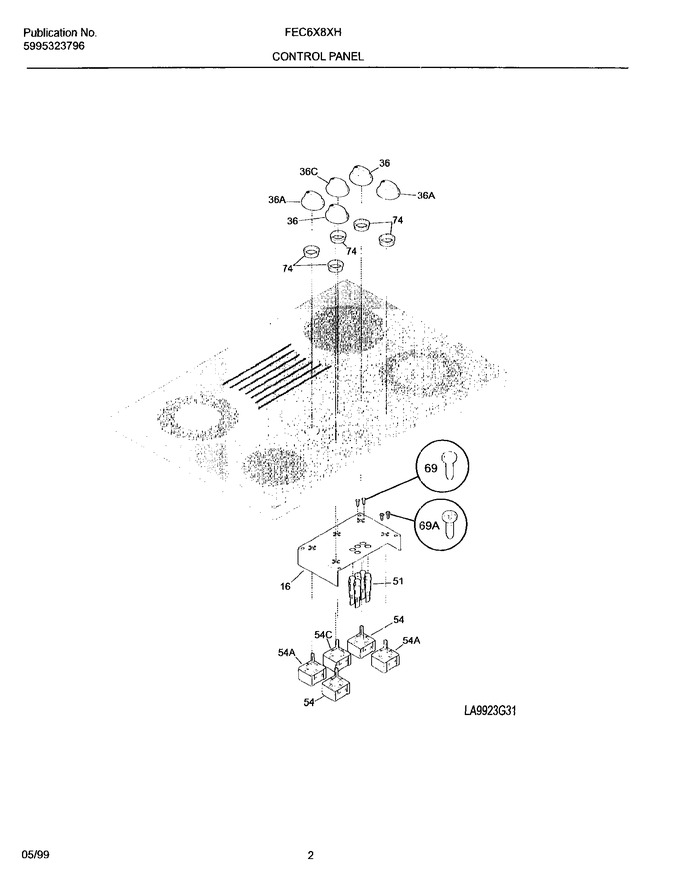

Diagram for FEC6X8XHSA
