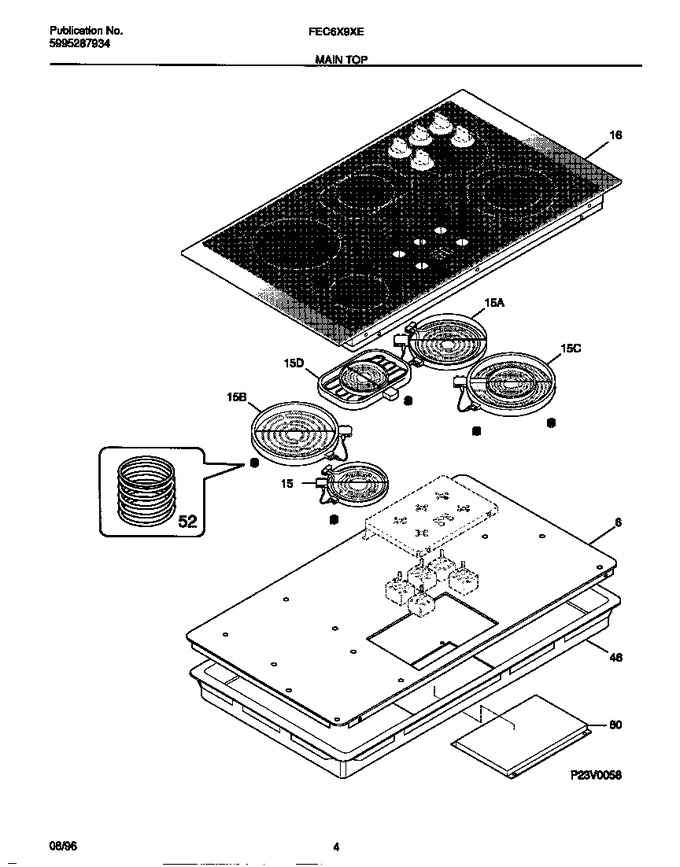

03 - Main Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318080221		Plate-cooktop		Appelez-nous	-
15	318050102		Element-surface, 1700 W		Appelez-nous	-
15	318050300		Element-surface, 1800 W		Appelez-nous	-
15	5303297142		Element-surface, Halogen, Small/6 Inch, W/limit Switch		Appelez-nous	-
15	318050201		Element-surface, 1000w/1900w		Appelez-nous	-
15	5303297143		Element-surface, Halogen, Large/8 Inch, W/limit Switch		Appelez-nous	-
16	318079321		Main Top, White		Appelez-nous	-
46	318077221		Burner Box		Appelez-nous	-
80	5303297401		Panel-access		Appelez-nous	-
*61121	08007817		Spacer, (2)		Appelez-nous	-
*61122	318124900		Screen-thermal		Appelez-nous	-
*61123	318125120		Deflector		Appelez-nous	-
*61124	318125200		Screen-thermal		Appelez-nous	-
52A	318122000		Spring-element Mtg, 1800w		Appelez-nous	-
52B	318122001		Spring-element Mtg, 1700w		Appelez-nous	-
52C	318122002		Spring-element Mtg, 1000w/1900w		Appelez-nous	-
52D	318122003		Spring-element Mtg, 2200w		Appelez-nous	-
