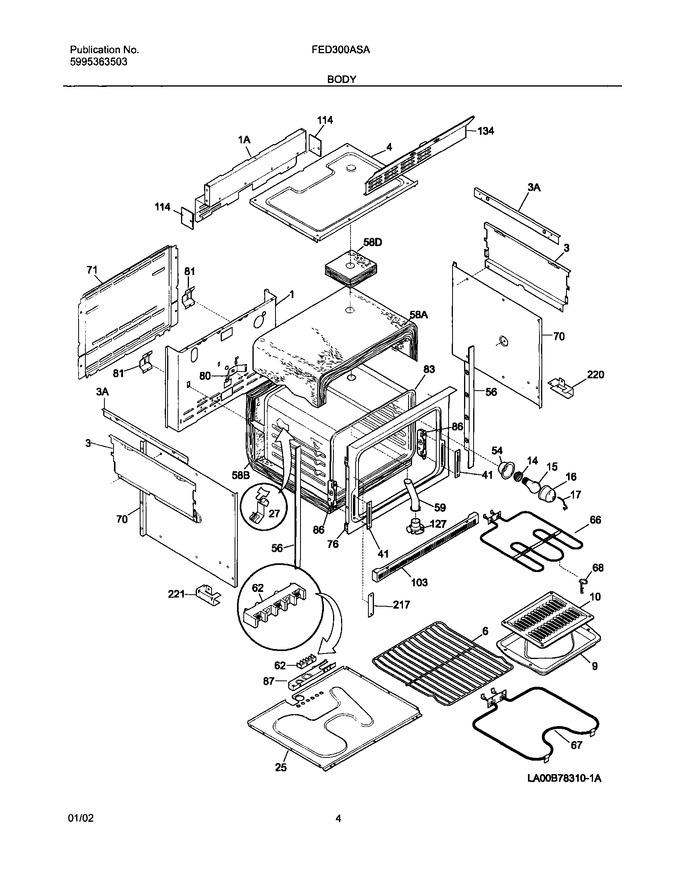

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066402		Panel,main Back		Appelez-nous	-
3	318159800		Panel,body Side ,upper		Appelez-nous	-
4	318133400		Burner Box		Appelez-nous	-
6	318025314		Rack,shelf ,30`` ,oven   (Replaces: 5303310522)			Immediately	$ 148.70
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	318179107		Panel,heat Shield ,sm Oven Bottom		Appelez-nous	-
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	318002712		Trim,oven Front ,white		Appelez-nous	-
59	318072524		Tube,oven Vent		Appelez-nous	-
66	318255605		Element,broil ,2750 W   (Replaces: 5303310513)			Immediately	$ 192.78
68	5304403015		Support,element Hanger				$ 35.04
70	318194400		Shield,insulation				$ 33.03
71	5303310515		Panel,wiring Cover ,rear				$ 368.97
76	318124102		Front,oven		Appelez-nous	-
80	5303324473		Bracket,oven Mounting		Appelez-nous	-
81	318192400		Spring,oven				$ 312.53
83	318089613		Liner,oven				$ 205.64
86	5303310524		Receptacle,hinge		Appelez-nous	-
87	318111800		Plate,cord Set Mtg		Appelez-nous	-
103	5303300213		Trim,base ,white		Appelez-nous	-
114	318175100		Plate-filler		Appelez-nous	-
127	318317100		Adapter,vent Tube ,with Converter   (Replaces: 5303310542)				$ 75.13
134	318077610		Cover,wire		Appelez-nous	-
217	316042300		Plate,warning		Appelez-nous	-
220	5304401475		Bracket		Appelez-nous	-
221	5304401476		Bracket		Appelez-nous	-
1A	318070910		Panel,main Back ,upper		Appelez-nous	-
3A	318195100		Bracket,support		Appelez-nous	-
58A	318133700		Insulation,oven Wrapper		Appelez-nous	-
58B	318133747		Insulation,oven Back		Appelez-nous	-
58D	3008673		Insulation		Appelez-nous	-
F14	316116400		Receptacle, Oven Light   (Replaces: 5308011085)			Immediately	$ 56.10
F15	3201908		Light,oven		Appelez-nous	-
F62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
F67	318255006		Element,bake ,3000 W   (Replaces: 5303310512)			Immediately	$ 185.14
NI	316205500		Nut, Hex, 10-32   (Replaces: 5303308427)				$ 11.34
NI	5303310517		Plate,ground Strap		Appelez-nous	-
NI	318078515		Box & Wires Assy		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
