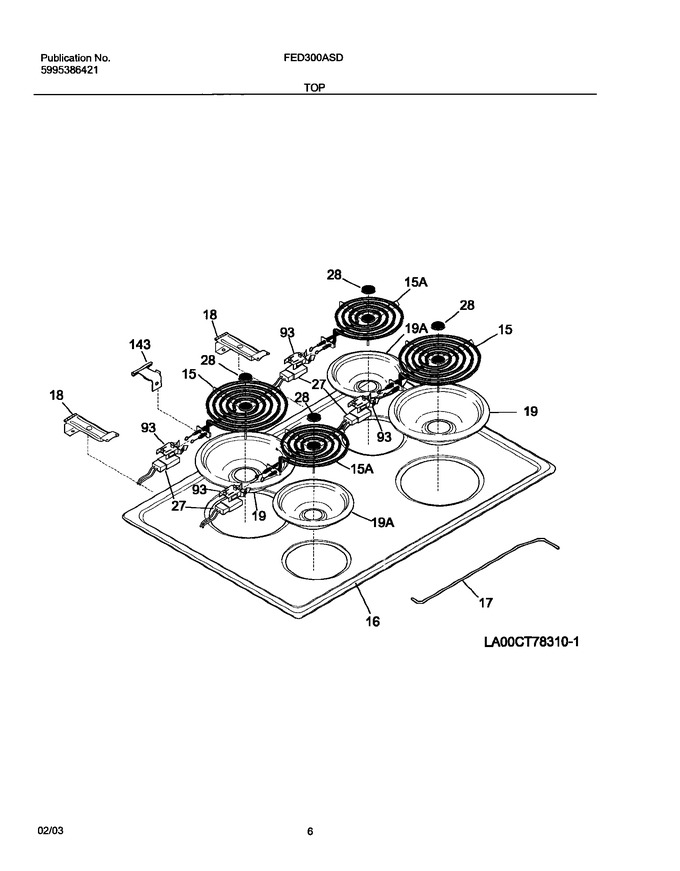

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5303300166		Main Top, White		Appelez-nous	-
17	3051554		Rod,support ,main Top Panel		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
28	5303301461		Medallion, Surface Element		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
143	5303300148		Bracket-hinge Support		Appelez-nous	-
F15	5308011964		Element,surface ,large/8 Inch ,(2) ,medallion Incl				$ 209.08
F15A	316439802		Element,surface ,small/6 Inch ,1250w ,medallion Incl   (Replaces: 5303299749)			Immediately	$ 192.78
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	318223313		Terminal Block,surface Element ,48`` ,orange Leads		Appelez-nous	-
F27	318223314		Terminal Block,surface Element ,36`` ,white Leads		Appelez-nous	-
F27	318223315		Terminal Block,surface Element ,36`` ,yellow Leads		Appelez-nous	-
F27	318223318		Terminal Block,surface Element ,42`` ,brown Leads		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303325174		Screw		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
