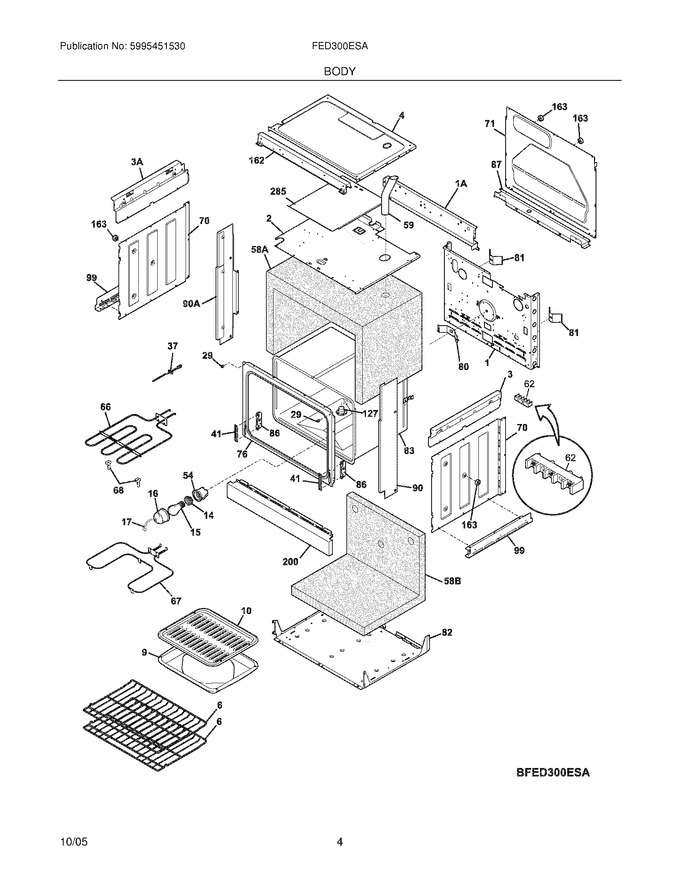

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259202		Back,main		Appelez-nous	-
2	318258900		Shield,insulation ,upper		Appelez-nous	-
3	318225210		Panel,bodyside ,upper Rh				$ 55.86
4	318073906		Panel,subtop		Appelez-nous	-
6	318262502		Rack,oven		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	318147430		Bumper,(2)   (Replaces: 318147411)				$ 18.95
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
59	318072572		Tube,vent ,oven		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
68	5304403015		Support,hanger ,(2) ,broil Element				$ 35.04
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260007		Panel,rear Box				$ 102.90
76	318056216		Front,oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258707		Shield,insulation ,lower				$ 108.24
83	318261403		Liner,oven Assy		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
87	318260600		Bracket,cable Mtg.		Appelez-nous	-
90	318296922		Panel,filler ,white ,rh		Appelez-nous	-
99	318256200		Bracket,side ,bottom ,(2)		Appelez-nous	-
127	318317000		Adapter,vent Tube				$ 19.16
162	318225810		Box,extension		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
200	318330001		Trim,door Opening ,white ,bottom				$ 232.84
285	318236200		Shield,hidden Wires		Appelez-nous	-
1A	318225110		Panel,main Back ,upper				$ 63.05
3A	318225211		Panel,bodyside ,upper Lh				$ 48.25
58A	318285074		Insulation,oven Wrapper				$ 58.31
58B	318285075		Insulation,oven Back				$ 56.54
90A	318296923		Panel,filler ,white ,lh		Appelez-nous	-
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F67	318255006		Element,bake ,3000w   (Replaces: 318255002)			Immediately	$ 185.14
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318078526		Box & Wires Assy		Appelez-nous	-
NI	318224920		Harness,wiring ,main		Appelez-nous	-
NI	5303325856		Kit,anti-tip		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
