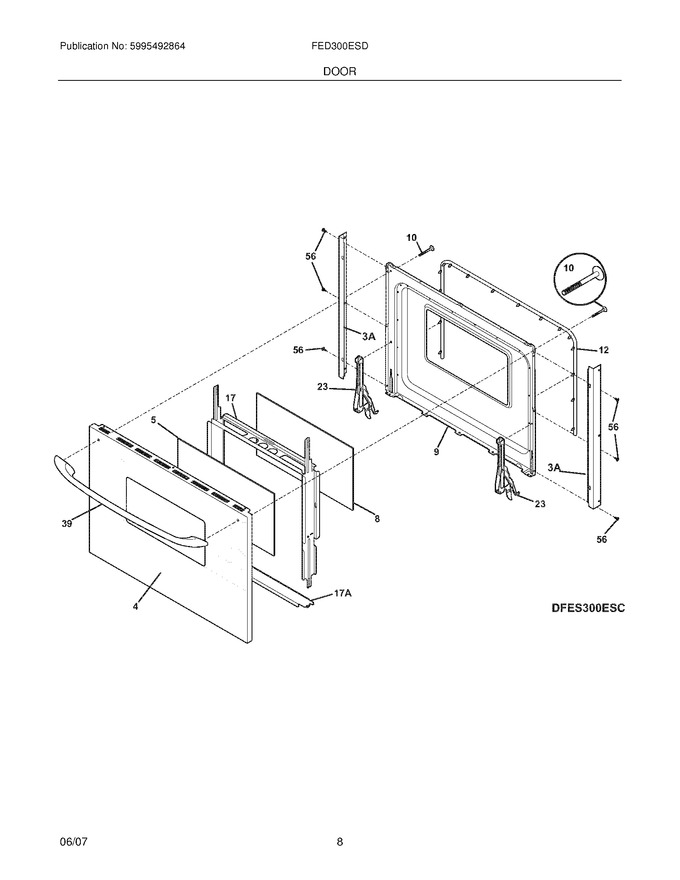

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318297001		Panel,door ,white		Appelez-nous	-
5	318311800		Glass,door ,inner				$ 101.80
8	316427700		Glass,oven Door ,inner				$ 178.09
9	318259624		Liner,oven Door		Appelez-nous	-
10	5304453223		Screw,handle Mtg ,10-14 X 1.82 ,(2)			Immediately	$ 13.19
12	318053325		Seal,door ,lower Oven				$ 64.94
17	318300501		Bracket,glass				$ 42.05
23	5303320452		Hinge,oven Door		Appelez-nous	-
39	316270201		Handle,door ,white			Immediately	$ 128.29
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
17A	318300600		Bracket,glass ,lower				$ 200.66
3A	318298101		Trim,door ,black ,side ,(2)		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
