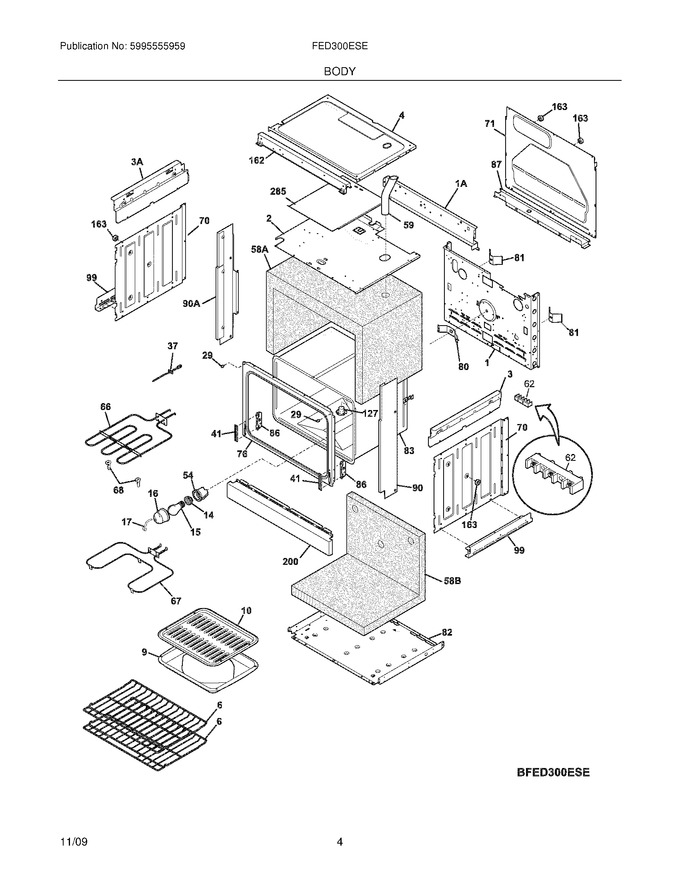

05 - Body


07 - Main Top


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318258902		Shield,insulation ,upper		Appelez-nous	-
3	318225210		Panel,bodyside ,upper Rh				$ 55.86
4	318073906		Panel,subtop		Appelez-nous	-
6	318345207		Rack,oven				$ 69.20
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
59	318549815		Tube,oven Vent		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
68	5304403015		Support,hanger ,(4) ,broil Element				$ 35.04
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318260007		Panel,rear Box				$ 102.90
76	318056216		Front,oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258765		Shield,insulation ,lower				$ 85.68
83	318261403		Liner,oven Assy		Appelez-nous	-
86	318342400		Receptacle,hinge				$ 43.24
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
90	318296922		Panel,filler ,white ,rh		Appelez-nous	-
99	318256200		Bracket,side ,bottom ,(2)		Appelez-nous	-
127	318317000		Adapter,vent Tube				$ 19.16
162	318225810		Box,extension		Appelez-nous	-
163	318014105		Spacer,(2)		Appelez-nous	-
200	318330001		Trim,door Opening ,white ,bottom				$ 232.84
285	318236201		Shield,hidden Wires		Appelez-nous	-
1A	318225110		Panel,main Back ,upper				$ 63.05
3A	318225211		Panel,bodyside ,upper Lh				$ 48.25
58A	318285074		Insulation,oven Wrapper				$ 58.31
58B	318285075		Insulation,oven Back				$ 56.54
90A	318296923		Panel,filler ,white ,lh		Appelez-nous	-
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
F67	318255006		Element,bake ,3000w   (Replaces: 318255002)			Immediately	$ 185.14
FNI	318224920		Harness,wiring ,main		Appelez-nous	-
FNI	318394445		Box & Wires Assy		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303325856		Kit,anti-tip		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
