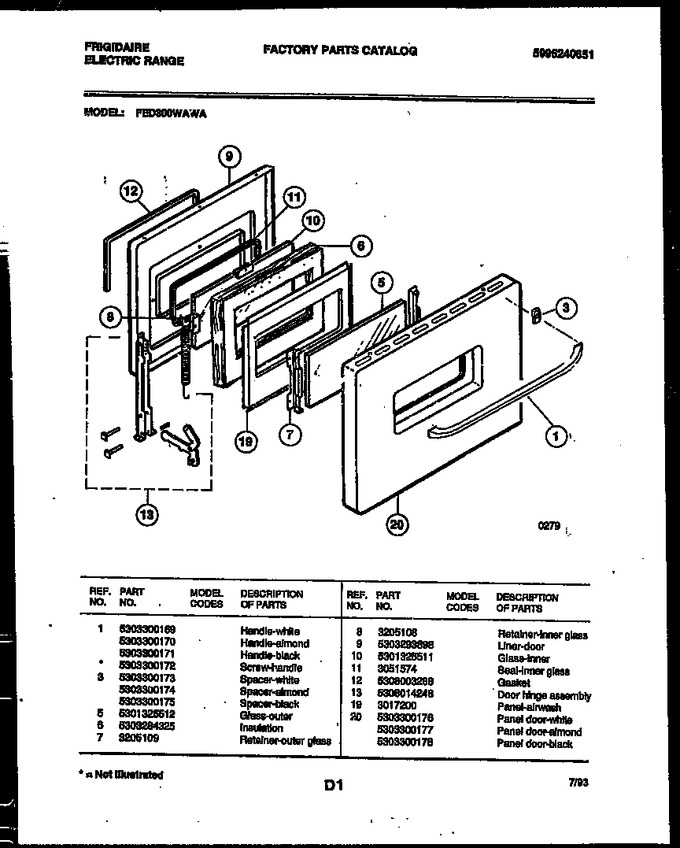

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop And Broiler Parts
04 - Door Parts
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303300170 | Handle-almond |
|
- | |||||
| 3 | 5303300174 | Spacer-almond |
|
- | |||||
| 5 | 5301325512 | Glass - Outer |
|
- | |||||
| 6 | 5303284325 | Insulation |
|
- | |||||
| 7 | 3205109 | Retainer-outer Glass |
|
- | |||||
| 8 | 3205108 | Retainer - Inner Glass |
|
- | |||||
| 9 | 5303293898 | Liner-door |
|
- | |||||
| 10 | 5301325511 | Glass, Inner |
|
- | |||||
| 11 | 3051574 | Seal, Inner Glass |
|
$ 36.58 | |||||
| 12 | 5308003268 | Gasket |
|
- | |||||
| 13 | 5308014248 | Door Hinge Assembly |
|
- | |||||
| 19 | 3017200 | Panel, Airwash |
|
- | |||||
| 20 | 5303300177 | Panel Door-almond |
|
- | |||||
| 1A | 5303300172 | Screw-handle (non-illustrated) |
|
- |
