02 - Control Panel


03 - Cooktop And Broiler Parts


04 - Door Parts


05 - Body Parts

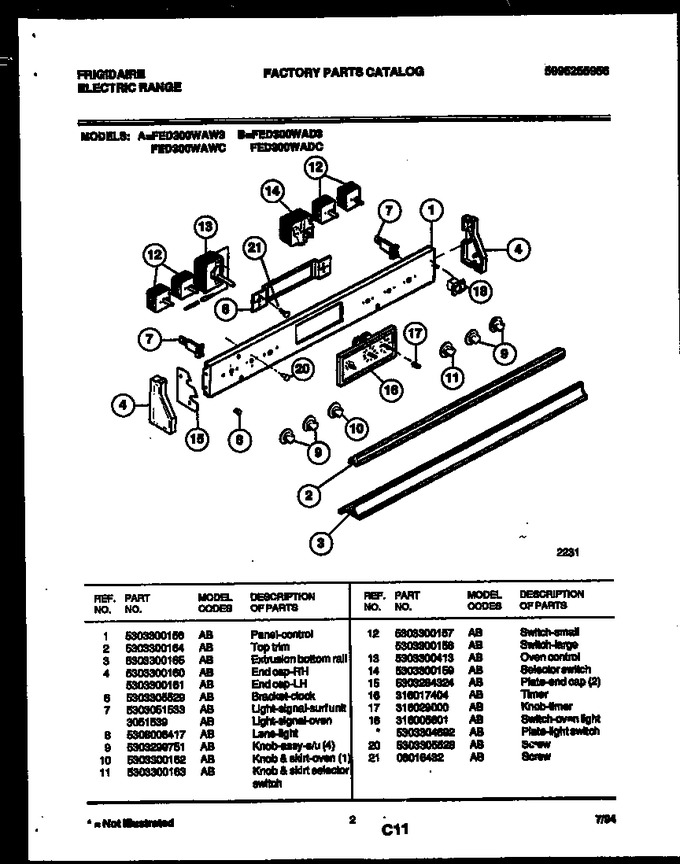

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300156		Panel-control		Appelez-nous	-
2	5303300164		Top Trim		Appelez-nous	-
3	5303300165		Extrusion Bottom Rail		Appelez-nous	-
4	5303300160		End Cap, Rh		Appelez-nous	-
6	5303305529		Bracket-clock		Appelez-nous	-
7	5303051533		Light-signal Surf Unit				$ 53.81
8	5308006417		Lens-light				$ 19.06
9	5303299751		Knob-assy-s/u (4)		Appelez-nous	-
10	5303300162		Knob & Skirt-oven (1)		Appelez-nous	-
11	5303300163		Knob & Skirt Selector Switch		Appelez-nous	-
12	5303300157		Switch-small		Appelez-nous	-
13	5303300413		Oven Control		Appelez-nous	-
14	5303300159		Selector Switch				$ 74.45
15	5303284324		Plate-end Cap (2)		Appelez-nous	-
16	316017404		Timer		Appelez-nous	-
17	316029000		Knob-timer		Appelez-nous	-
18	316005601		Switch-oven Light		Appelez-nous	-
20	5303323137		Screw   (Replaces: 5303305528)				$ 11.88
21	08016432		Screw		Appelez-nous	-
12A	5303300158		Switch-large		Appelez-nous	-
18A	5303304692		Plate-light Switch		Appelez-nous	-
4A	5303300161		End Cap, Lh		Appelez-nous	-
7A	3051539		Light-signal-oven				$ 60.53
