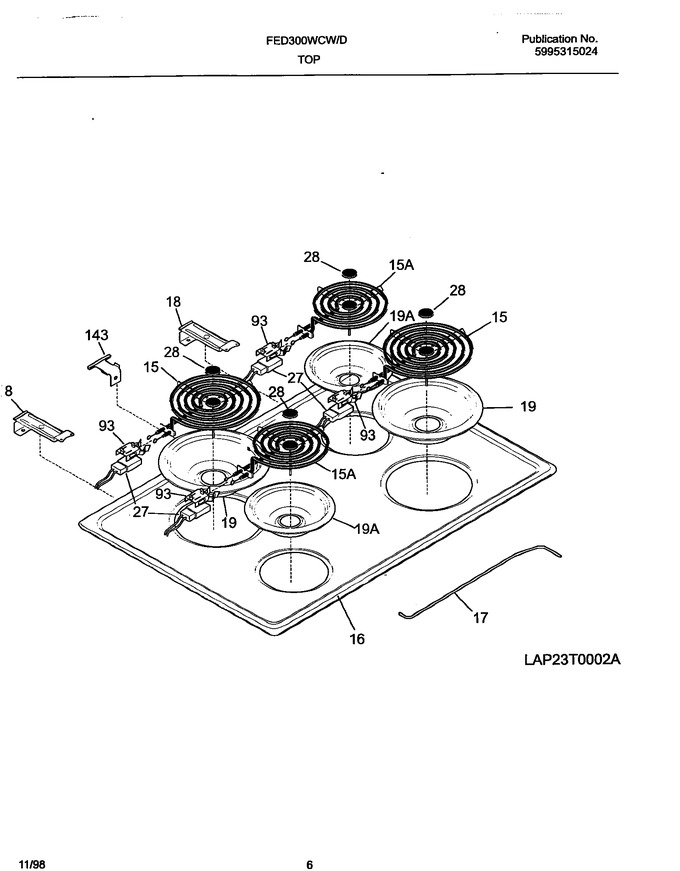

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5303300167		Main Top, Almond		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
18	5303305530		Bracket-hinge		Appelez-nous	-
19	316048413		Pan-surface Element,large/8 Inch   (Replaces: 318067010)			Immediately	$ 9.85
28	5303301461		Medallion, Surface Element		Appelez-nous	-
93	318122500		Support Terminal Block		Appelez-nous	-
143	5303300148		Bracket-hinge		Appelez-nous	-
19A	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
F15	5308011964		Element-surface 2100w				$ 209.08
F15A	316439802		Element-surface 1250w   (Replaces: 5303299749)			Immediately	$ 192.78
F27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303325174		Cap-screw		Appelez-nous	-
