SELECT A DIAGRAM

01 - Cover


02 - Backguard

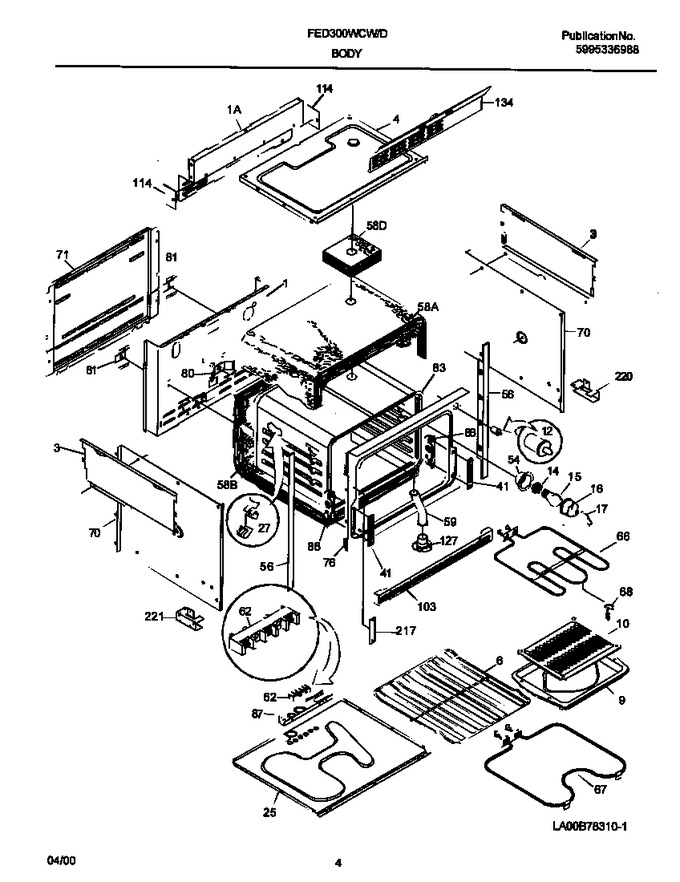

03 - Body


04 - Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5308011964		Element,surface ,large/8 Inch ,(2) ,medallion Incl				$ 209.08
15	316439802		Element-surface, Small/6 Inch, (2)   (Replaces: 5303299749)			Immediately	$ 192.78
16	5303300167		Main Top, Almond		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
19	316048413		Pan-surface Element,large/8 Inch   (Replaces: 318067010)			Immediately	$ 9.85
19	316048414		Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336)			Immediately	$ 16.11
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
143	5303300148		Bracket-hinge		Appelez-nous	-
*58813	3201899		Washer,hinge Assy		Appelez-nous	-
*58814	08002868		Screw 10 X 24 X 1/2				$ 14.18
*58815	08011955		Screw,10-24 X 3/8 ,square Drive			Immediately	$ 9.36
*58816	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*58817	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*58818	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*58819	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*58820	5303325174		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
