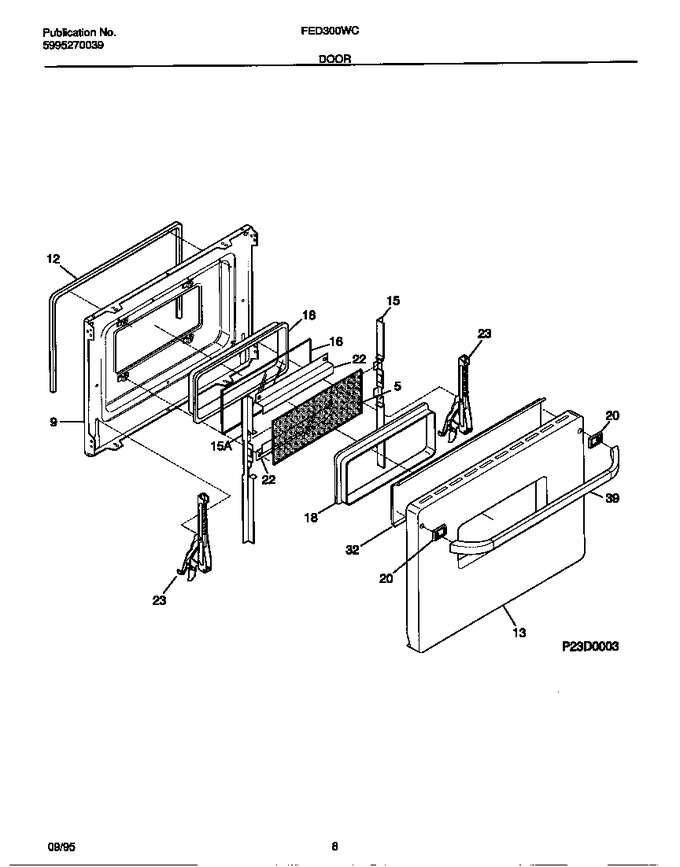

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door, Inner		Appelez-nous	-
9	5303311133		Liner-oven Door		Appelez-nous	-
12	5303311134		Seal-oven Door		Appelez-nous	-
13	318009004		Panel-oven Door, White		Appelez-nous	-
15	5303311136		Bracket-glass Mtg, Rh		Appelez-nous	-
15	5303311137		Bracket-glass Mtg, Lh		Appelez-nous	-
16	5303310507		Glass-oven Door, Heat Barrier		Appelez-nous	-
18	5303310505		Seal-rope		Appelez-nous	-
20	5303310504		Spacer-handle, Small Oven, (2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310506		Hinge Assy		Appelez-nous	-
32	5303310509		Deflector		Appelez-nous	-
39	316270201		Handle-door, White, Oven   (Replaces: 5303311172)			Immediately	$ 128.29
39	5303311174		Screw-handle (not Illustrated)			Immediately	$ 14.89
