SELECT A DIAGRAM

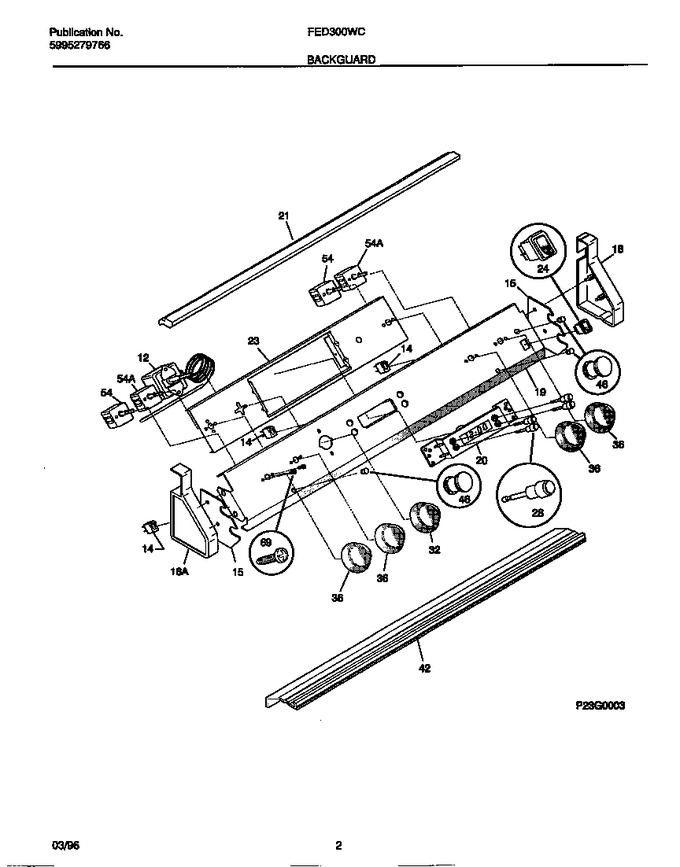

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303300160		End Cap, Rh		Appelez-nous	-
18	5303300161		End Cap, Lh		Appelez-nous	-
19	5303311121		Panel-control		Appelez-nous	-
20	316065400		Clock/timer		Appelez-nous	-
21	318027800		Trim-backguard, Top		Appelez-nous	-
23	318015001		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
28	5303311122		Button-clock		Appelez-nous	-
32	318016306		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-surface Unit, (3)		Appelez-nous	-
42	318106900		Trim-vent		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
54	318120501		Switch-surface Unit, Small, (3)				$ 244.13
54	5500-200		Switch-surface Unit, Double   (Replaces: 5303311186)			Immediately	$ 54.85
69	5303323137		Screw, Switch Mtg, (6)   (Replaces: 5303305528)				$ 11.88
12A	5303311120		Thermostat-oven		Appelez-nous	-
12B	5303311124		Screw-thermostat, (2) (not Illustrated)		Appelez-nous	-
14A	3051539		Light/lamp-oven, Indicator				$ 60.53
14B	5303051533		Light-lamp/indicator				$ 53.81

    View Diagram in Separate Window       Print Part List
