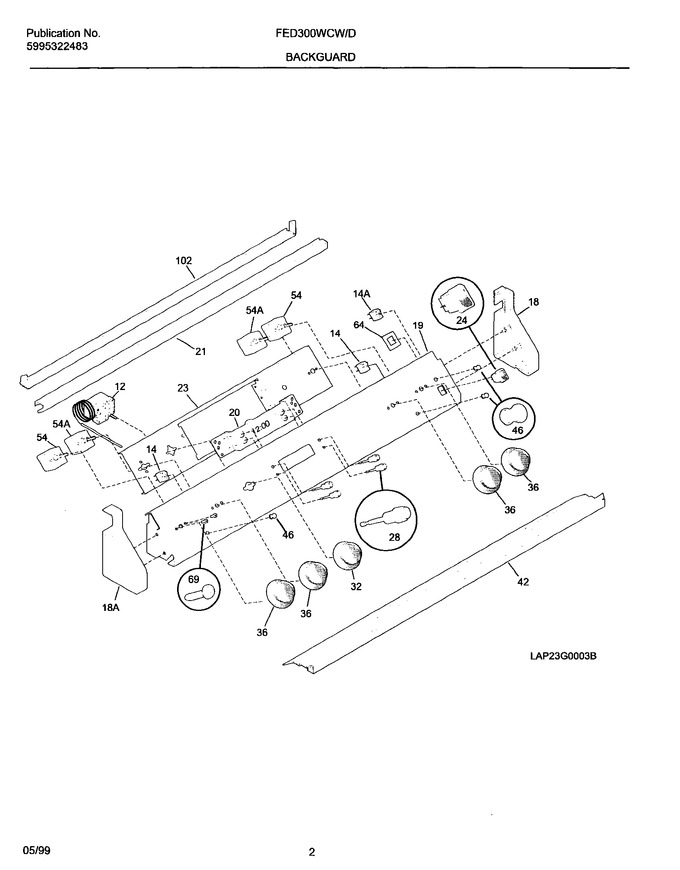

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
19	318005579		Panel-control,almond		Appelez-nous	-
21	318027800		Trim-backguard, Top		Appelez-nous	-
23	318015001		Bracket-clock Mtg		Appelez-nous	-
28	5303272306		Button-clock		Appelez-nous	-
32	318016306		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black		Appelez-nous	-
42	318106900		Trim-vent, Black		Appelez-nous	-
46	5308006417		Lens-light / Lamp, Indicator				$ 19.06
64	318112200		Plate		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
102	318055601		Bracket-mounting				$ 34.13
14A	3051539		Light/lamp-oven, Indicator				$ 60.53
18A	5303300161		End Cap, Black, Lh		Appelez-nous	-
F12	6700G0001		Thermostat-oven   (Replaces: 5303311369)			Immediately	$ 295.97
F20	318011401		Clock		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	318120501		Switch-surface Unit				$ 244.13
F54A	5500-200		Switch-surface Unit   (Replaces: 5303311186)			Immediately	$ 54.85
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303311124		Screw 6-20 X 1/2		Appelez-nous	-
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	5303323145		Nut		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
