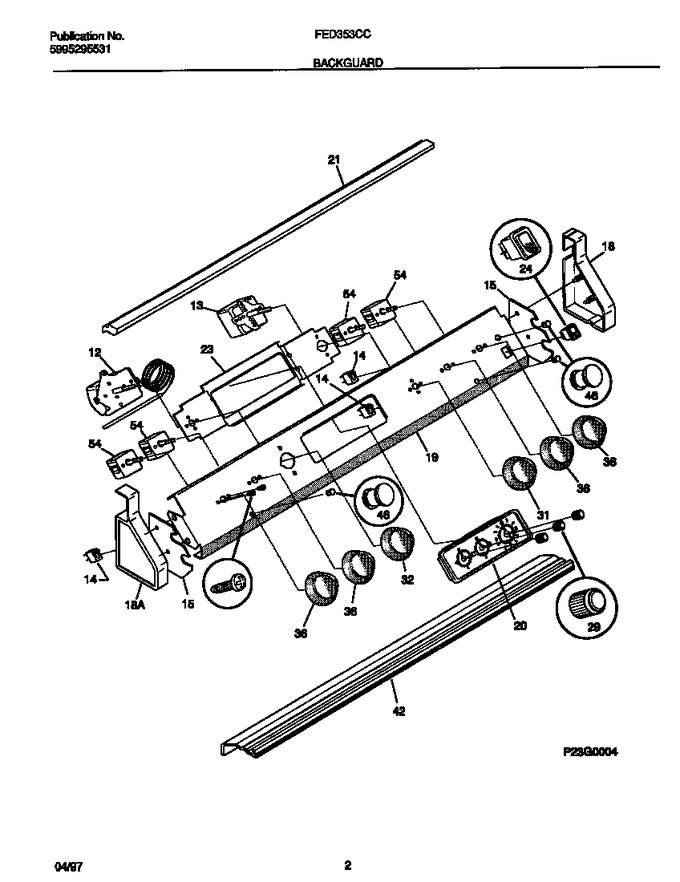

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303300188		Thermostat-oven				$ 376.43
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
19	5303300187		Panel-control		Appelez-nous	-
21	318027800		Trim-backguard, Top		Appelez-nous	-
23	5303305529		Bracket-clock Mtg		Appelez-nous	-
29	318036310		Knob-clock				$ 41.32
31	5303300191		Knob-selector		Appelez-nous	-
32	5303300190		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black, (4)		Appelez-nous	-
42	318106900		Trim-vent, Black		Appelez-nous	-
46	5308006417		Lens-light/lamp, Indicator, Red, (5)				$ 19.06
*00000	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*00001	5303300265		Screw, 8-18 X 1/2				$ 15.17
*00002	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*00003	5303285912		Washer, Bracket-clock		Appelez-nous	-
13A	5303300189		Switch-selector				$ 256.62
13B	5303323137		Screw, Switch Mtg (not Illustrated)   (Replaces: 5303305528)				$ 11.88
14A	5303051533		Light/lamp, Indicator, 125v, (2)				$ 53.81
14B	5303051849		Light/lamp-oven, Indicator, (2)		Appelez-nous	-
14C	5303271245		Light/lamp, Oven Lock		Appelez-nous	-
20A	316017404		Clock/timer, Analog 3 Stem		Appelez-nous	-
20B	5303288566		Screw-clock (not Illustrated)   (Replaces: 5303320848)				$ 2.12
20C	08016432		Screw, Truss Head, 8-18 X 3/8, (4) (not Illustrated)		Appelez-nous	-
24A	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
24B	5303304692		Plate, Backup, Light Switch (not Illustrated)		Appelez-nous	-
54A	318120501		Switch-surface Unit, (4)				$ 244.13
54B	5303288565		Screw, Switch Mtg., 8-32 X 3/16 (not Illustrated)   (Replaces: 5303323134)				$ 3.12

    View Diagram in Separate Window       Print Part List
