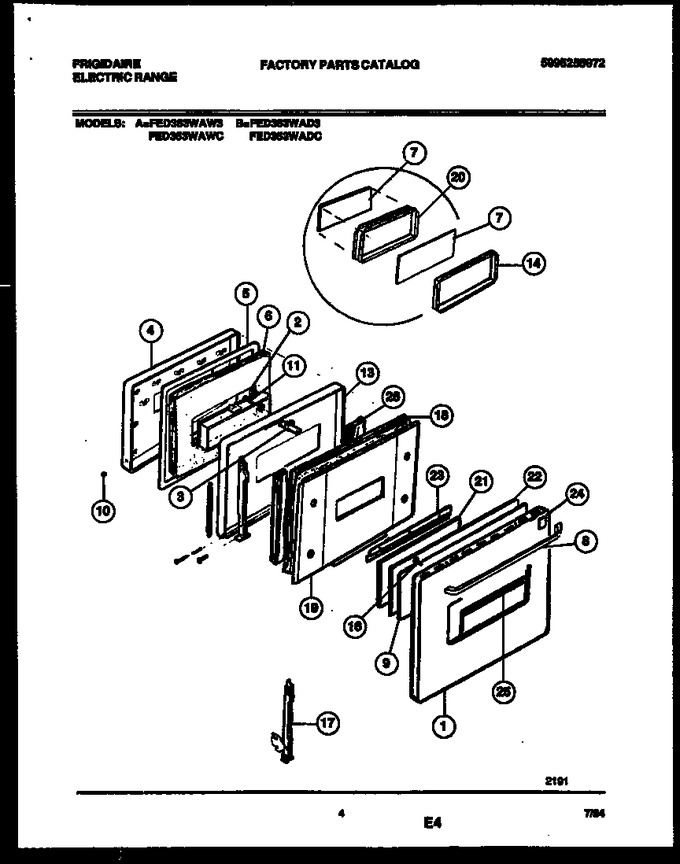

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303300368 | Panel-door-almond |
|
- | |||||
| 2 | 5303269535 | Gasket, Window |
|
- | |||||
| 3 | 5301167830 | Strike, Assembly |
|
- | |||||
| 4 | 5303300194 | Baffle Door Assembly |
|
- | |||||
| 5 | 5303051704 | Gasket |
|
$ 388.08 | |||||
| 6 | 5303269528 | Insulation-baffle |
|
- | |||||
| 7 | 5303209512 | Glass Heat Barrier (2) |
|
$ 150.41 | |||||
| 8 | 5303305532 | Handle |
|
- | |||||
| 9 | 5301318805 | Insulation-panel |
|
- | |||||
| 10 | 3051807 | Button, Plug (2) |
|
- | |||||
| 11 | 5303300195 | Screw (2) |
|
- | |||||
| 13 | 5303293392 | Liner-door |
|
- | |||||
| 14 | 5303269564 | Collar-glass |
|
- | |||||
| 16 | 5303300172 | Screw-handle |
|
- | |||||
| 17 | 5303210232 | Door Hinge Assembly |
|
- | |||||
| 18 | 5303269529 | Insulation-airwash |
|
- | |||||
| 19 | 5303269570 | Panel, Airwash |
|
- | |||||
| 20 | 5303269679 | Spacer-glass |
|
- | |||||
| 21 | 5303269526 | Glass-outer |
|
- | |||||
| 22 | 5303300234 | Panel-insulator Pad |
|
- | |||||
| 23 | 5303269554 | Bracket-mounting (2) |
|
- | |||||
| 24 | 5303305533 | Spacer (2) |
|
- | |||||
| 25 | 5301313568 | Moulding |
|
- | |||||
| 26 | 5303212546 | Insulation-airwash |
|
- |
