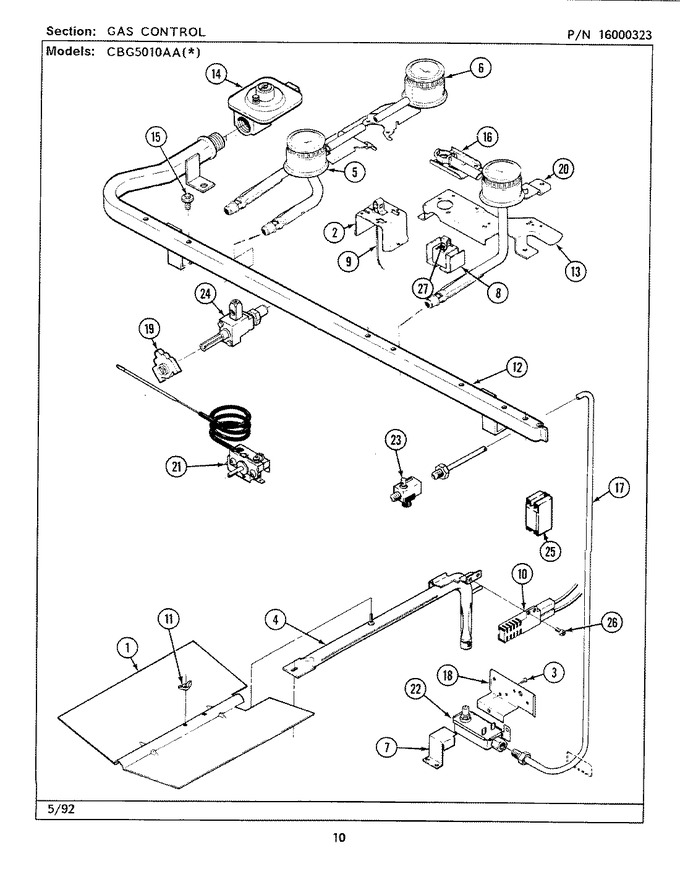

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F101-45 | Baffle, Oven Burner | 17 |
|
- | ||||
| 2 | 3807F232-45 | Support, Ignitor | 17 |
|
- | ||||
| 3 | WP4159193 | Screw (Replaces: 7101P115-60) | 17 |
|
$ 4.29 | ||||
| 4 | 7505P065-60 | Burner, Oven | 17 |
|
- | ||||
| 5 | 7505P098-60 | Burner, Top Front----na | 17 |
|
- | ||||
| 5 | 7505P170-60 | Burner-top Front | 20 |
|
- | ||||
| 6 | 7505P099-60 | Burner, Top Rear | 17 |
|
- | ||||
| 6 | 7505P171-60 | Burner, Top Rear | 20 |
|
- | ||||
| 7 | 4005F173-51 | Cover, Valve Terminal | 17 |
|
- | ||||
| 8 | 3807F069-34 | Support | 17 |
|
- | ||||
| 9 | 7432P029-60 | Igniter, Top Burner (lt) | 17 |
|
- | ||||
| 10 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 17 |
|
Immediately | $ 60.44 | |||
| 11 | 7103P030-60 | Nut, Wing | 17 |
|
$ 6.37 | ||||
| 12 | 7513P138-60 | Pipe, Manifold | 17 |
|
- | ||||
| 13 | 3807F230-34 | Support, Griddle Burner | 17 |
|
- | ||||
| 14 | 7510P002-60 | Regulator, Pressure | 17 |
|
- | ||||
| 15 | 7101P044-60 | Screw, Valve | 18 |
|
- | ||||
| 15 | 7101P293-60 | Screw | 17 |
|
- | ||||
| 16 | 7506P018-60 | Tube | 17 |
|
- | ||||
| 17 | 3414F051-44 | Tubing 3/8 X 56.5`` | 17 |
|
- | ||||
| 18 | 3807F124-34 | Support | 17 |
|
- | ||||
| 19 | 7403P285-60 | Switch, Igniter | 17 |
|
$ 54.75 | ||||
| 19 | WP7403P287-60 | Switch, Igniter (Replaces: 7403P287-60) | 18 |
|
$ 130.75 | ||||
| 20 | 7505P102-60 | Burner - Griddle----na | 17 |
|
- | ||||
| 21 | 7101P279-60 | Screw W/washer | 17 |
|
- | ||||
| 21 | 7404P062-60 | Thermostat, Oven | 17 |
|
- | ||||
| 22 | 7501P106-60 | Valve, Oven | 17 |
|
- | ||||
| 22 | 1555251 | Nut, Loxit (3/8``) | 17 |
|
- | ||||
| 23 | 7502P002-60 | Valve, Shut Off | 17 |
|
- | ||||
| 24 | 7502P138-60 | Valve Burner | 17 |
|
- | ||||
| 24 | 7502P185-60 | Valve, Burner | 18 |
|
- | ||||
| 25 | 12001596 | Module, Spark (Replaces: 7431P027-60) | 25 |
|
Immediately | $ 85.93 | |||
| 25 | 12001596 | Module, Spark (Replaces: 7431P017-60) | 17 |
|
Immediately | $ 85.93 | |||
| 26 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 17 |
|
$ 4.29 | ||||
| 27 | 7432P015-60 | Igniter, Top Burner | 17 |
|
$ 53.77 |
