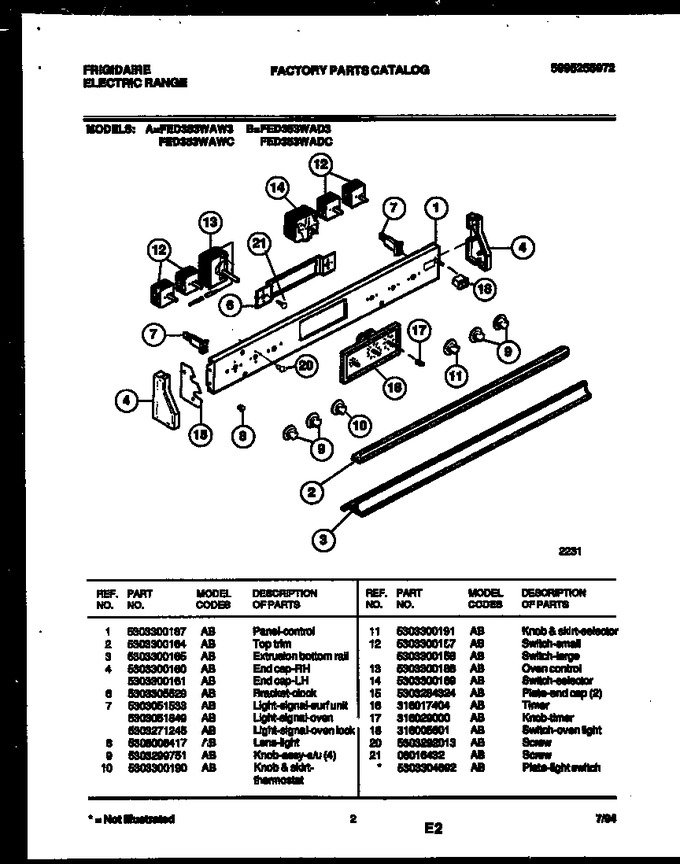

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300187		Panel-control		Appelez-nous	-
2	5303300164		Top Trim		Appelez-nous	-
3	5303300165		Extrusion Bottom Rail		Appelez-nous	-
4	5303300160		End Cap, Rh		Appelez-nous	-
6	5303305529		Bracket-clock		Appelez-nous	-
7	5303051533		Light-signal Surf Unit				$ 53.81
7	5303271245		Light-signal Oven Lock		Appelez-nous	-
8	5308006417		Lens-light				$ 19.06
9	5303299751		Knob-assy-s/u (4)		Appelez-nous	-
10	5303300190		Knob & Skirt-thermostat		Appelez-nous	-
11	5303300191		Knob & Skirt-selector		Appelez-nous	-
12	5303300157		Switch-small		Appelez-nous	-
13	5303300188		Oven Control				$ 376.43
14	5303300189		Switch-selector				$ 256.62
15	5303284324		Plate-end Cap (2)		Appelez-nous	-
16	316017404		Timer		Appelez-nous	-
17	316029000		Knob-timer		Appelez-nous	-
18	316005601		Switch-oven Light		Appelez-nous	-
20	5303292013		Screw		Appelez-nous	-
21	08016432		Screw		Appelez-nous	-
*10567	5303304692		Plate-light Switch		Appelez-nous	-
12A	5303300158		Switch-large		Appelez-nous	-
4A	5303300161		End Cap, Lh		Appelez-nous	-
7A	5303051849		Light-signal Oven		Appelez-nous	-
