02 - Backguard


03 - Oven Door


04 - Main Top, Control Panel


05 - Burners, Manifold, Gas Control


06 - Basic Body


07 - Utility Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	665T188P02		Spacer, Bodyside (8)		Appelez-nous	-
3	3131363		Tube, Oven Light		Appelez-nous	-
4	662T042P01		Socket-oven Light		Appelez-nous	-
5	374T018P05		Light Bulb, Oven		Appelez-nous	-
6	3131104		Wire, Glass Retainer		Appelez-nous	-
7	3131298		Glass, Oven Lamp		Appelez-nous	-
8	3131569		Channel-door Hinge		Appelez-nous	-
9	3131570		Cover-hinge Cutout (2)				$ 7.35
10	3131312		Shield, Heat, Upper		Appelez-nous	-
11	3131313		Shield-heat-lower		Appelez-nous	-
12	3131295		Clip, Thermostat Bulb (2)		Appelez-nous	-
13	3051734		Switch, Latching		Appelez-nous	-
14	241T001P01		Fastener, Push On (3)		Appelez-nous	-
15	174T329P01		Cover, Rod		Appelez-nous	-
16	3131567		Back, Main		Appelez-nous	-
17	3051495		Rod, Light		Appelez-nous	-
18	3131278		Angle, Light Shield		Appelez-nous	-
19	3131294		Channel, Light Shield		Appelez-nous	-
20	695T128P04		Switch, Door		Appelez-nous	-
21	3131289		Bracket, Light Switch		Appelez-nous	-
22	3131590		Shield, Rear Wall		Appelez-nous	-
23	3131316		Shield, Heat		Appelez-nous	-
24	145T130P01		Clip, Wire		Appelez-nous	-
25	3131931		Flue		Appelez-nous	-
26	3131355		Gasket, Flue		Appelez-nous	-
27	358T158S02		Knob, Latch		Appelez-nous	-
28	368T027P01		Latch, Door		Appelez-nous	-
29	3131357		Handle, Latch		Appelez-nous	-
30	3131101		Cover, Plate		Appelez-nous	-
31	095T030F02-86		Burner Box		Appelez-nous	-
32	3131311		Shield, Main Front		Appelez-nous	-
33	3131314		Shield-oven-top		Appelez-nous	-
34	3131315		Shield, Heat Baffle		Appelez-nous	-
35	3131477		Panel, Bodyside, Wheat (right Hand)		Appelez-nous	-
36	636M004P01		Screw, Leveling		Appelez-nous	-
37	3051221		Rack, Oven (2)		Appelez-nous	-
38	3131356		Insert, Broiler Pan		Appelez-nous	-
39	539T010F01-86		Pan, Broiler		Appelez-nous	-
40	058T036F03-86		Bottom, Oven		Appelez-nous	-
41	102T044P02		Button, Remove Switch		Appelez-nous	-
42	174T333P01		Cover, Burner Box		Appelez-nous	-
43	3051162		Glide, Utility Drawer			Immediately	$ 8.22
44	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
*26441	5304534000		Cord, Power   (Replaces: 3131425)			Immediately	$ 33.37
*26442	3131593		Shield, Bi Metal Latch		Appelez-nous	-
*26443	636T144P01		Screw, Latch Knob		Appelez-nous	-
*26445	3131903		Bumper				$ 55.36
*26446	241T017P255		Fastener, Power Cord		Appelez-nous	-
*26447	3131303		Insulation, Back		Appelez-nous	-
*26448	3131302		Insulation, Front, Main		Appelez-nous	-
*26449	3131304		Insulation-top		Appelez-nous	-
*26450	655T434F01		Shield, Wire		Appelez-nous	-
*26451	3131305		Insulation, Touch		Appelez-nous	-
*26452	316282700		Screw, Oven Bottom (2)   (Replaces: 3131732)				$ 9.93
*26453	657T018P01		Shield, Latch Switch		Appelez-nous	-
*26455	3017133		Insulation, Wrap		Appelez-nous	-
*26456	3017527		Replacing Aluminum Foil When Order This Bodyside Panel		Appelez-nous	-
*26457	3131956		Spacer, Baffle		Appelez-nous	-
14A	3051307		Stud, Spacer (2) (non-illustrated)		Appelez-nous	-
27A	3131737		Washer, Black (non-illustrated)				$ 5.59
27B	655T437F01		Shield, Wool (non-illustrated)		Appelez-nous	-
35A	3131478		Panel, Bodyside, Wheat (left Hand)		Appelez-nous	-
40A	694T092F01		Support, Oven Bottom (2) (non-illustrated)		Appelez-nous	-

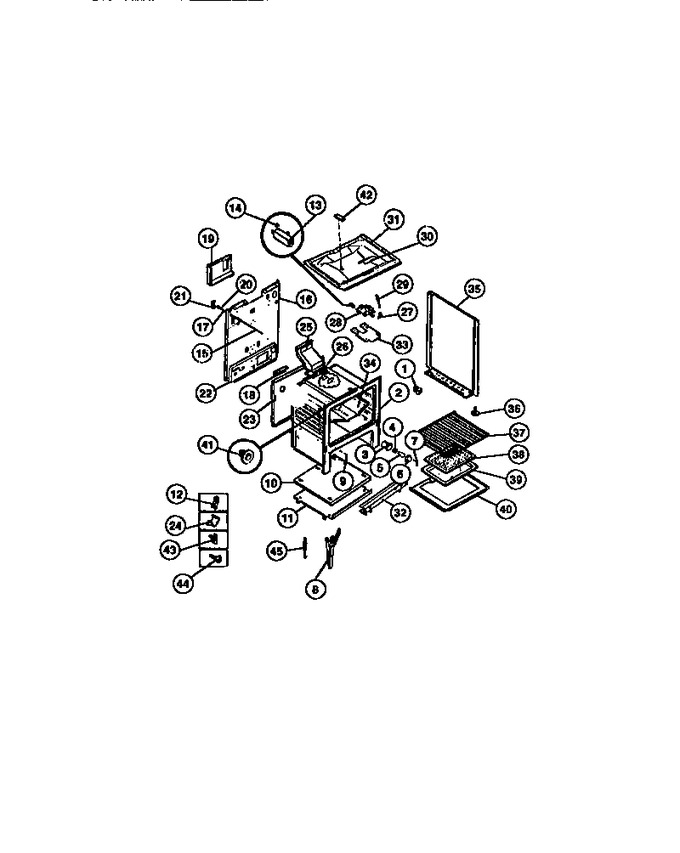

    View Diagram in Separate Window       Print Part List
