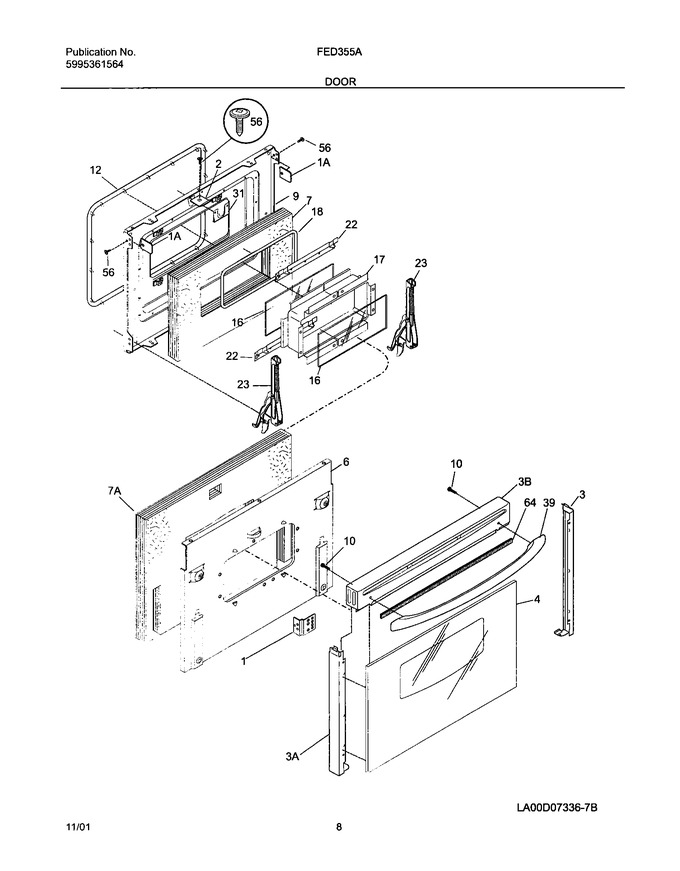

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
2	318180312		Bracket,upper Trim Mtg		Appelez-nous	-
3	318178322		Trim,door ,white ,rh Side		Appelez-nous	-
4	318187717		Panel,door Front Assy ,glass ,white ,with Lower Trim		Appelez-nous	-
6	318057031		Shield,insullation ,black ,door		Appelez-nous	-
7	318133706		Insulation,oven Door		Appelez-nous	-
9	318157013		Liner,door				$ 291.59
10	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
17	318139000		Spacer,oven Door Glass ,inner Frame		Appelez-nous	-
18	5303310531		Gasket,door Glass Seal ,inner		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318024700		Hinge,oven Door		Appelez-nous	-
31	5303310536		Latch,oven Door				$ 30.66
39	316108800		Handle,door ,white ,oven		Appelez-nous	-
56	316021109		Screw,8-18 X 17/32 ,white   (Replaces: 5303317175)			Immediately	$ 27.50
64	5304417120		Tape,0.762 M ,neoprene		Appelez-nous	-
1A	318180310		Bracket,trim Mtg				$ 65.31
3A	318178323		Trim,door ,white ,lh Side				$ 29.71
3B	318176646		Trim,door ,white ,top				$ 96.62
7A	318133707		Insulation,oven Door ,cavity		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
