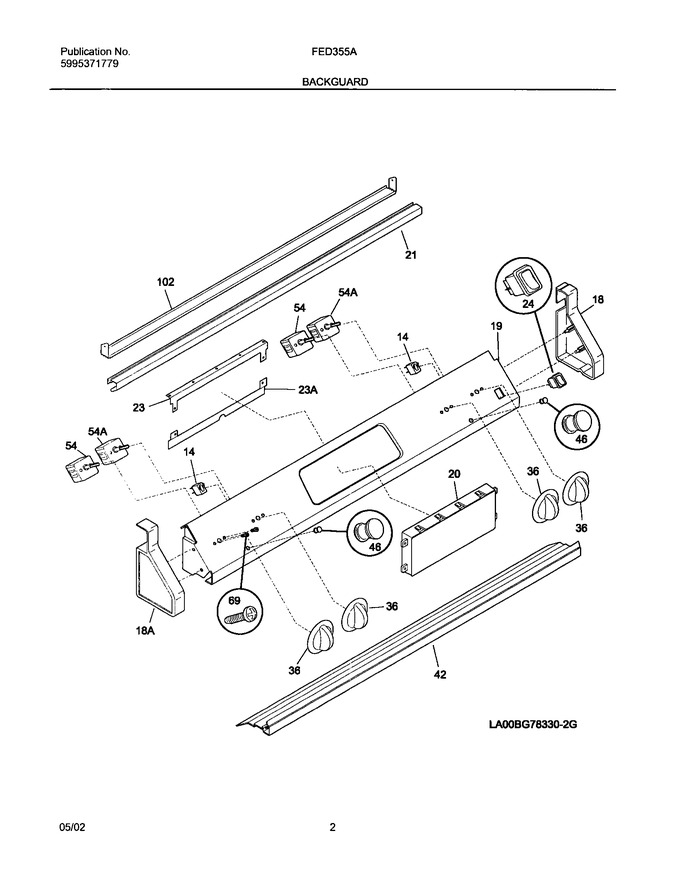

03 - Backguard


05 - Body


07 - Maintop


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303304668		End Cap, White, Rh		Appelez-nous	-
19	318182990		Panel,control Mtg. ,white		Appelez-nous	-
21	318027804		Trim-backguard,white ,top				$ 135.56
23	318015042		Bracket,clock Mtg ,upper		Appelez-nous	-
36	318196633		Knob,control ,white				$ 62.95
42	318106924		Trim,backguard ,white ,bottom				$ 132.04
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
102	318055601		Bracket-mounting				$ 34.13
18A	5303304671		End Cap, White, Lh		Appelez-nous	-
23A	318015043		Bracket,clock Mtg ,lower		Appelez-nous	-
F14	318076700		Light,indicator ,125v		Appelez-nous	-
F20	318185413		Clock/timer,electronic ,white		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	318293820		Switch,surface Unit ,small   (Replaces: 318220006)				$ 83.62
F54A	318293827		Switch,surface Unit ,large   (Replaces: 318220007)			Immediately	$ 90.82
NI	5303323145		Nut		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
