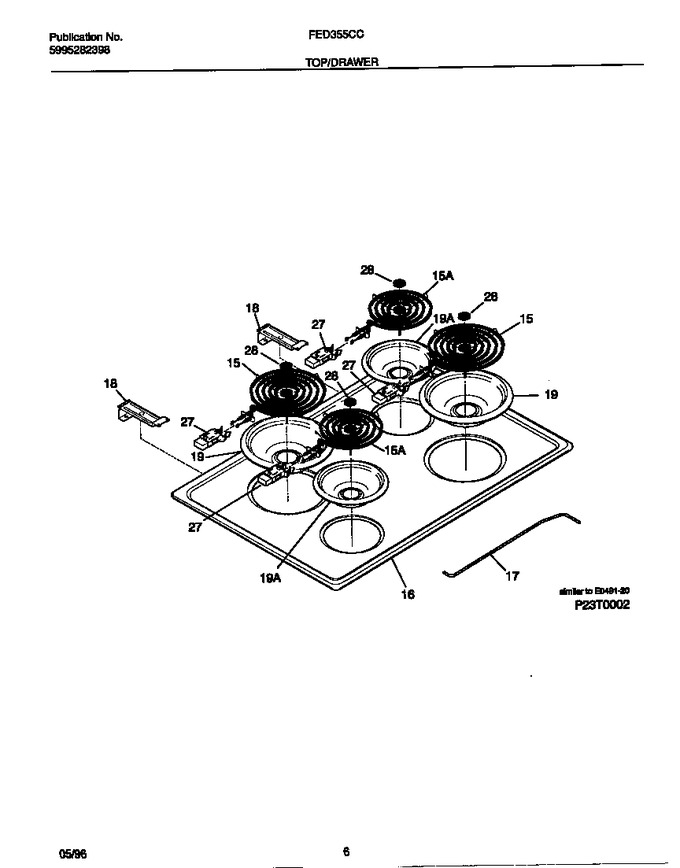

04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | PS12-4BK | Element-surface, Small/6 Inch (Replaces: 5303309000) |
|
Immediately | $ 35.96 | ||||
| 15 | 316442301 | Element-surface, Large/8 Inch (Replaces: 5303309001) |
|
Immediately | $ 44.39 | ||||
| 16 | 5303307287 | Main Top, Black |
|
- | |||||
| 17 | 3051554 | Rod-maintop Support |
|
- | |||||
| 18 | 5303305530 | Bracket-hinge, Main Top, (2) |
|
- | |||||
| 19 | 316048413 | Pan-surface Element, Large/8 Inch (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 19 | 316048414 | Pan-surface Element, Small / 6 Inch (Replaces: 5303280336) |
|
Immediately | $ 16.11 | ||||
| 27 | 5303935058 | Terminal Block Kit, Surface Element (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 28 | 5303301461 | Medallion, Surface Element |
|
- |
