SELECT A DIAGRAM

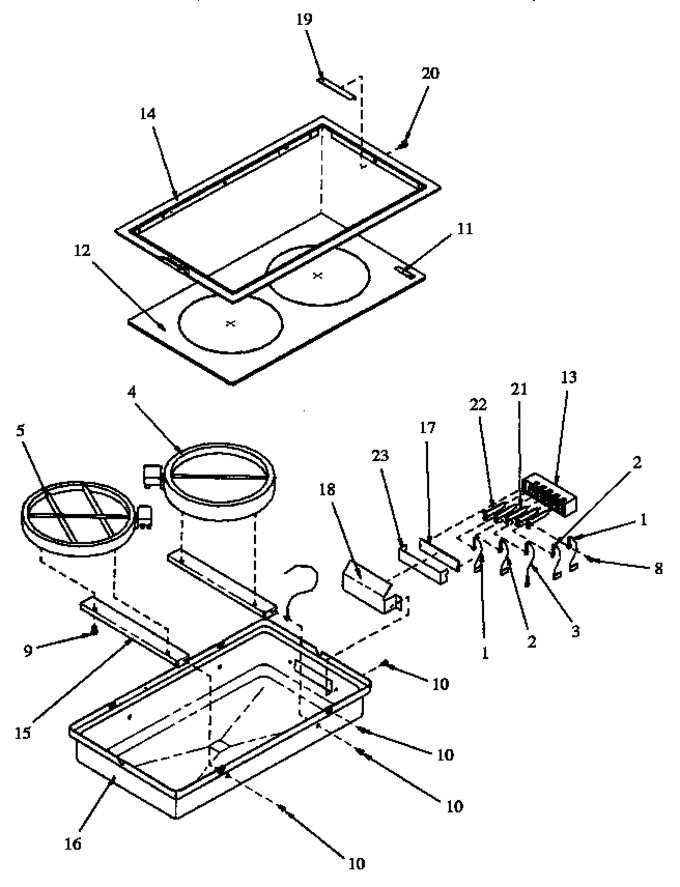

01 - Halogen Module


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0312317		Jumper Wire		Appelez-nous	-
2	0312318		Jumper Wire		Appelez-nous	-
3	Y0312319		Jumper Wire		Appelez-nous	-
4	YD8603105		Quick Star Assy		Appelez-nous	-
5	Y0307396		Assy, Halogen		Appelez-nous	-
8	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0307443)			Immediately	$ 6.47
9	0306212		Screw, Shoulder		Appelez-nous	-
10	Y0092373		Screw, No.6-20 X .375 Panhd(blk)		Appelez-nous	-
11	Y0307330		Tape, Vinyl Foam, Roll		Appelez-nous	-
12	307740B		Cooktop, Ceramic		Appelez-nous	-
13	Y0042211		Module, Plug Block		Appelez-nous	-
14	300983B		Module Top-elect (blk Enamel)		Appelez-nous	-
14	300752R		Frame, Chrome Mod.		Appelez-nous	-
15	0040970		Element Mtg. Brkt		Appelez-nous	-
16	300747B		Burner Pan, Module (blk)		Appelez-nous	-
17	0312330		Insulator Shield		Appelez-nous	-
18	Y0040964		Plug Block Mtg Brkt		Appelez-nous	-
19	0312338		Support Glass		Appelez-nous	-
20	Y0090431		Screw A-k		Appelez-nous	-
21	Y0052041		Contact, Spade-ground				$ 4.83
22	Y0052040		Contact, Spade-power		Appelez-nous	-
23	Y0078470		Tape, Glass Cloth, 1/2`` X 60 Y		Appelez-nous	-
NI	Y0312334		Limiter, Halogen Element		Appelez-nous	-
NI	Y0043430		Rtv (blk)		Appelez-nous	-
NI	0312936		Limiter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
