SELECT A DIAGRAM

01 - Cover

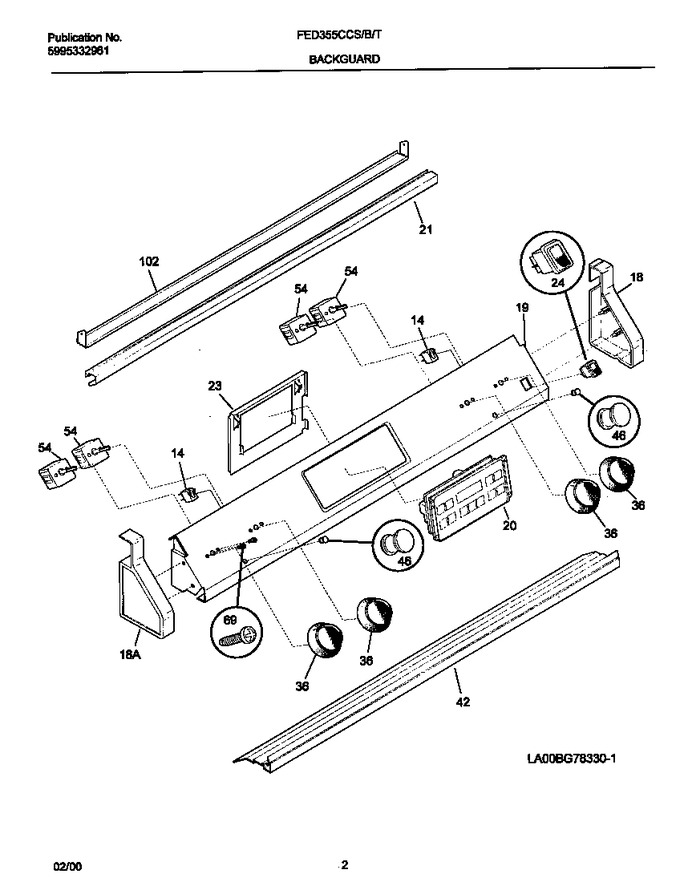

02 - Backguard


03 - Body


04 - Top


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
19	318005500		Panel-control, Black		Appelez-nous	-
20	318012917		Clock/timer, Eoc, Black		Appelez-nous	-
21	318027803		Trim,backguard ,black ,top		Appelez-nous	-
23	318015020		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
36	5303299751		Knob-surface Unit, Black, (4)		Appelez-nous	-
42	318106927		Trim,backguard ,black ,bottom				$ 188.06
46	318044511		Lens-indicator Light   (Replaces: 318044510)			Immediately	$ 25.66
54	318120501		Switch-surface Unit, (4)				$ 244.13
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
102	318055601		Bracket-mounting				$ 34.13
*28200	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*28201	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*28202	5303311124		Screw,(4)		Appelez-nous	-
*28203	5303323145		Nut		Appelez-nous	-
99A	5303304544		Spacer		Appelez-nous	-
99B	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
