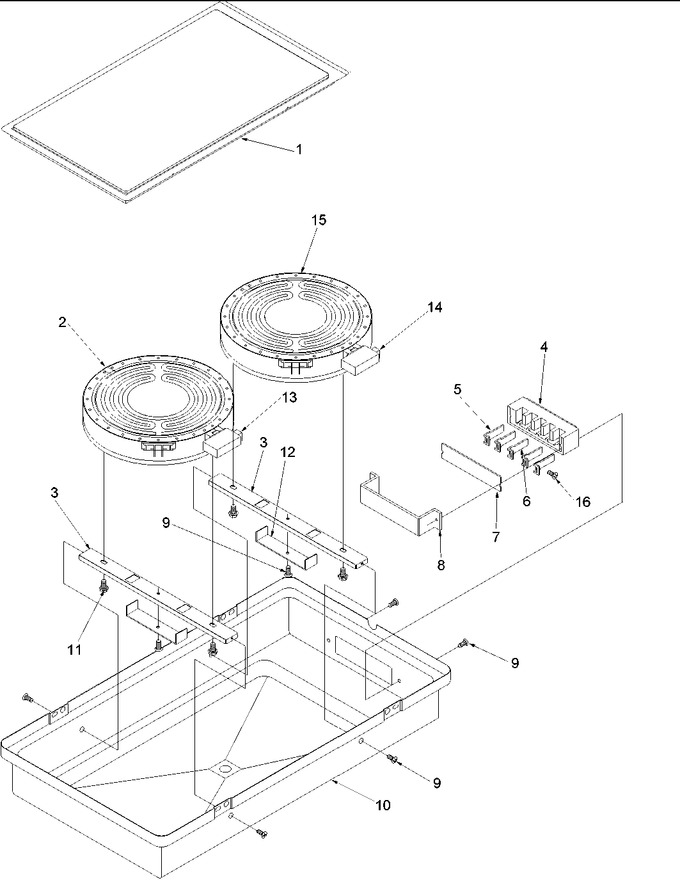

01 - Cc12hrx1 Halogen/ribbon


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	315187B		Assy, Frame& Glass		Appelez-nous	-
2	Y0307265		Assy, Haloring Heater Element		Appelez-nous	-
3	Y0315186		Brkt, Element Mtg		Appelez-nous	-
4	Y0314569		Module, Plug Block		Appelez-nous	-
5	Y0052040		Contact, Spade-power		Appelez-nous	-
6	Y0052041		Contact, Spade-ground				$ 4.83
7	Y0041994		Insulator-cooktop Module		Appelez-nous	-
8	0061496		Bracket, Plug Blk. Mtg.		Appelez-nous	-
9	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
10	31728001		Pan, Module (galv)		Appelez-nous	-
11	31750715		Screw, Shoulder Ab 6-20 X .825		Appelez-nous	-
12	Y0306683		Spring, Element		Appelez-nous	-
13	Y0312334		Limiter, Halogen Element		Appelez-nous	-
14	0316685		Limiter		Appelez-nous	-
15	X0315184		Element Ribbon 1500w		Appelez-nous	-
16	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: 31750401)			Immediately	$ 6.47
NI	WA906B		Scraper, Safety   (Replaces: Y0314434)			Immediately	$ 4.86
NI	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
NI	CERAMABRYTE		Cleaner, Cooktop(smooth)elco 1   (Replaces: Y0314274)			Immediately	$ 9.95
NI	0043579		Harness, Wire		Appelez-nous	-
NI	0043578		Harness, Wire		Appelez-nous	-
